What Is Valve Cv?

Views: 0     Author: Site Editor     Publish Time: 2025-05-28      Origin: Site

What Is Valve Cv?How to Calculate?

When choosing a valve for your system—like HVAC, industrial use, or water treatment—you’ll often see the term Valve Cv. But what does the term Valve Cv actually refer to?

In this guide, we’ll explain what Valve Cv means, how to calculate it, why it’s important, and how it helps you choose the right valve. When choosing the right valve, this article will help you understand Cv and why it matters.

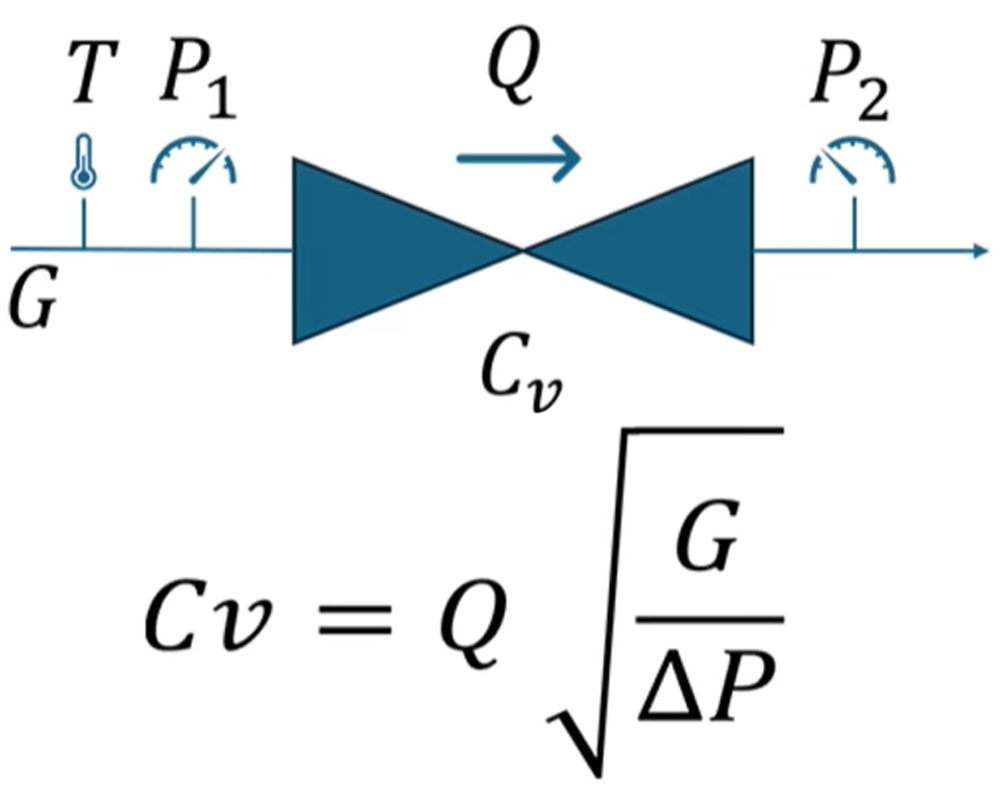

What Is Valve Cv5

What Is Valve Cv?

Valve Cv (Flow Coefficient) is a measurement of the capacity of a valve to allow fluid to flow. It tells you how many gallons of water at 60°F can pass through a valve with a 1 psi pressure drop in one minute.

Formula:
What Is Valve Cv1
Q = Flow rate (GPM)
ΔP = Pressure drop (psi)

The higher the Cv value, the greater the flow rate through the valve at a given pressure drop. This metric is crucial for sizing valves correctly, preventing undersized (restrictive) or oversized (inefficient) valves in your system.

Why Does Cv Matter?

Think of the difference between water flowing through a narrow tube and a large pipe. The straw restricts flow; the pipe allows more fluid to pass freely. The Cv value is what quantifies this difference for valves.

A few critical reasons why Cv matters:

  • • ✅ Ensures accurate flow control

  • • ✅ Optimizes system efficiency

  • • ✅ Prevents pressure losses

  • • ✅ Supports correct actuator selection

  • • ✅ Helps avoid cavitation or noise issues

Incorrect Cv selection can lead to poor valve performance, control instability, or excessive wear and energy consumption.

How to Calculate Cv

From a practical standpoint, you can use the following simplified formula for liquid applications:

What Is Valve Cv1

But for more precise calculations, especially with gases or steam, you must consider:

  • • Specific gravity (SG)

  • • Temperature and pressure conditions

  • • Compressibility factor

For gases:

What Is Valve Cv2

  • Q = Flow rate (SCFM)

  • SG = Specific gravity of gas (air = 1.0)

  • ΔP = Pressure drop (psi)

Tip: Many valve makers — including us — have online tools or Cv calculators to help you find the right valve for your flow needs.

Cv vs Kv – What’s the Difference?

Cv is the imperial unit (used in the U.S.), while Kv is the metric counterpart (used in Europe and Asia).

  • What Is Valve Cv3

  • Cv = Gallons per minute (GPM)

  • Kv = Cubic meters per hour (m³/h) at 1 bar pressure drop

They describe the same concept using different units.

What Affects a Valve’s Cv?

Even if two valves are the same size, their Cv values can be different. Experts at Belimo, Max-Air, and Hisaka emphasize that variations in valve shape and design impact the Cv rating.

Factor Impact on Cv
Valve type Globe valves < Ball valves
Valve size Larger valves = Higher Cv
Valve trim design Shape & flow path matter
Internal obstructions Reduce flow & lower Cv
Flow characteristics Linear, equal percentage, etc.

Always check the manufacturer’s data sheets or consult experts to make sure you select the correct Cv.

⚙️ Real-World Applications of Cv

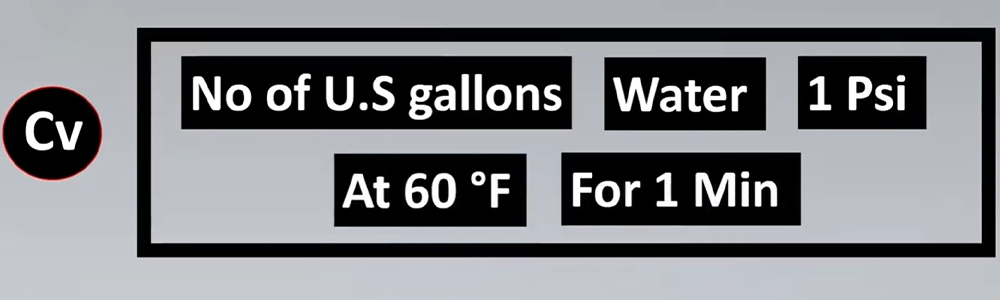

What Is Valve Cv4

  • • HVAC systems use Cv to size valves for heating/cooling loops.

  • • Process plants use Cv to regulate critical flows in reactors.

  • • Water distribution systems size valves for balancing and energy efficiency.

  • • Pneumatic systems rely on Cv to maintain consistent actuator performance.

In each of these applications, accurate valve sizing saves energy, increases reliability, and improves control.

️ Why Engineers Trust Cv When Choosing Valves

Professionals across industries use Cv as a baseline metric to:

  • • Compare performance between different valve types

  • • Choose correct actuator force and response time

  • • Ensure optimal flow control for critical processes

Looking for Reliable Valves with Certified Cv Ratings?

As a professional valve manufacturer, we offer:

  • • Precision-engineered valves with verified Cv ratings

  • • Expert consultation to help you select the right Cv

  • • Customized solutions for HVAC, water treatment, industrial automation, and more

Certified performance.
Dependable delivery performance ensuring on-time arrival.
Comprehensive OEM and ODM services offered.

If you’re working on a project or need help choosing the right valve size, contact our technical team today. We’ll help you find the best solution for your flow needs.

Key Takeaways

  • • Valve Cv defines how much fluid a valve can pass under a pressure drop.

  • • Understanding Cv is key to valve selection, sizing, and system efficiency.

  • • Incorrect Cv leads to poor control, energy waste, and performance issues.

  • • We provide reliable valves with accurate Cv values, backed by engineering support.
