What Is a Solenoid Valve?

Introduction

Solenoid valves are small devices that help control the flow of liquids or gases. Many places use them, such as factories, cars, air conditioners, and medical machines. If you’ve ever wondered “What is a solenoid valve?”, this comprehensive guide will answer all your questions.

You will learn how solenoid valves work, the different types, their applications, advantages, and how to select the best one for your needs. We make valves and want to explain why choosing good solenoid valves from someone you trust helps your system work better and last longer.

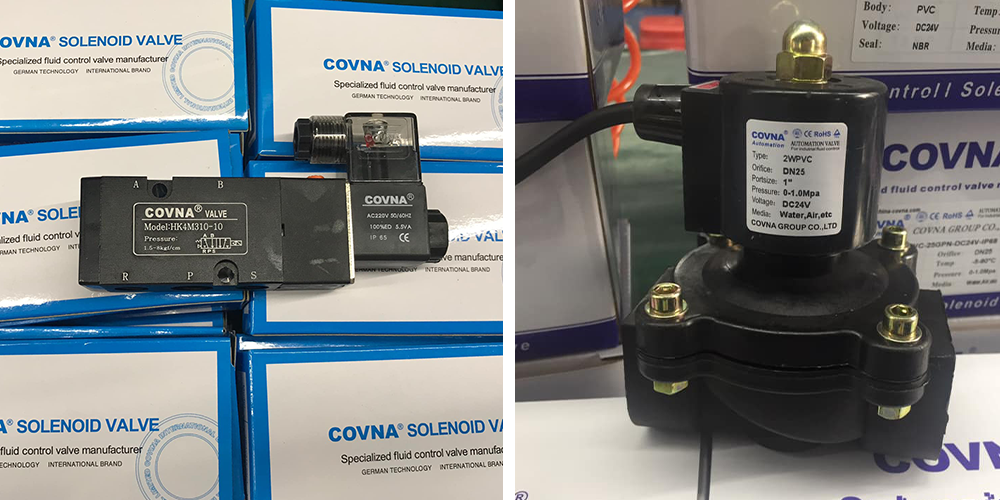

What Is a Solenoid Valve

1. What Is a Solenoid Valve?

A solenoid valve is an electromechanical device used to control the flow of liquids or gases automatically. It uses electric power to move a small part that opens or closes the valve, letting liquid or gas flow or stop.

Unlike manual valves, solenoid valves provide remote, fast, and precise control, making them indispensable in automation and process control.

Key Characteristics:

  • • Electrically operated: Uses an electric coil to actuate.

  • Control flow on/off: Typically acts as a switch for fluid flow.

  • Fast response: Opens or closes within milliseconds.

  • Compact design: Easily integrated into complex systems.

Basic Definition:

A solenoid valve uses electricity to move a small part inside the valve, which controls the flow of liquids or gases.

2. How Does a Solenoid Valve Work?

To understand how a solenoid valve works, you need to know how its electric parts and moving parts work together.

2.1 The Electromagnetic Principle

The solenoid valve operates on the principle of electromagnetism:

  • When an electric current flows through the solenoid coil (a tightly wound copper wire), it creates a magnetic field.

  • This magnetic field exerts a force on the plunger or armature (a ferromagnetic component inside the coil).

  • The plunger moves, either opening or closing the valve orifice, which controls the fluid flow.

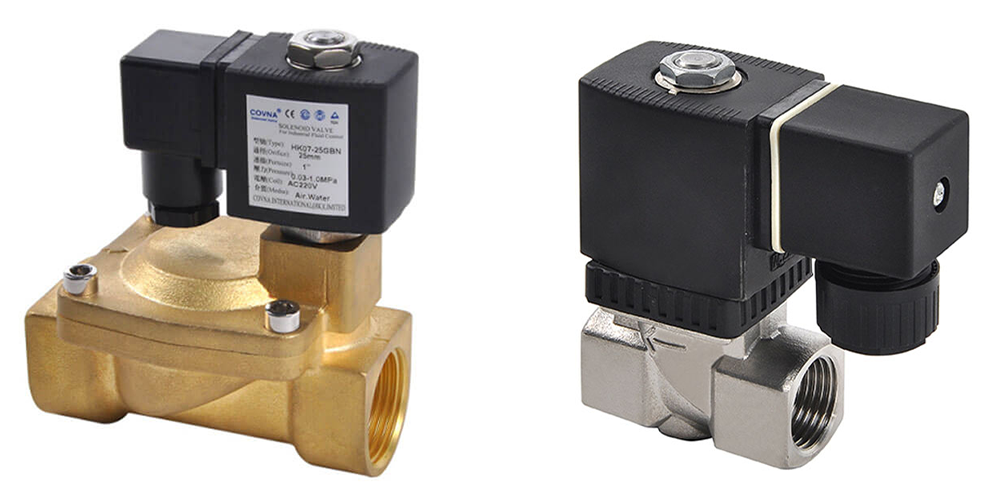

  • What Is a Solenoid Valve3

2.2 Detailed Operation Steps

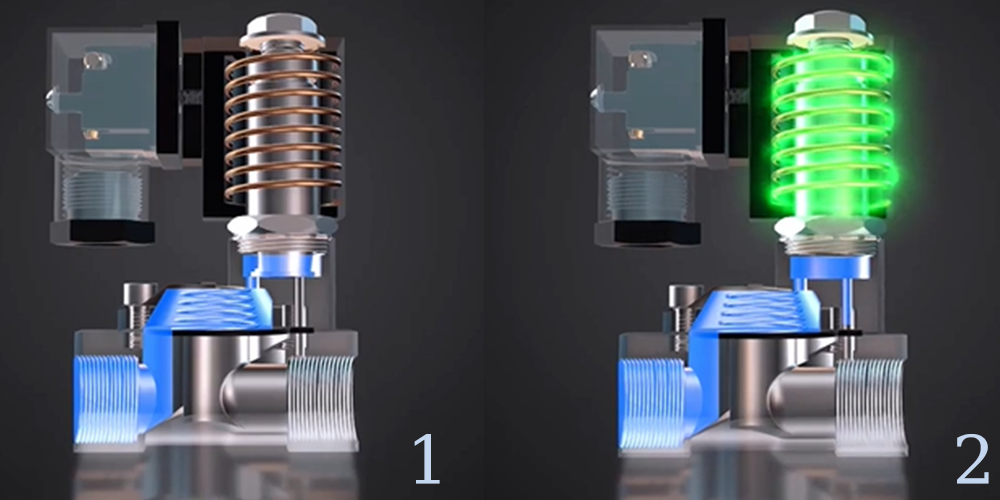

Let’s break down the operation in more detail for a normally closed (NC) solenoid valve:

Valve at Rest (De-energized):

  • The coil is not powered, so no magnetic field is generated.

  • A spring pushes the plunger down, pressing it tightly against the valve seat.

  • This seals the orifice, preventing fluid flow.

Valve Energized:

  • Electric current passes through the coil, creating a magnetic field.

  • The magnetic force pulls the plunger upwards against the spring force.

  • The orifice opens, allowing fluid to pass through the valve.

Valve Returns to Rest:

  • When power is cut off, the spring pushes the plunger back to its sealed position, stopping flow.

A normally open (NO) valve is open when the power is off, and it closes when the power is on.

2.3 Pilot-Operated Solenoid Valve Working

In high-pressure or large flow applications, a direct-acting valve plunger may be too heavy to move efficiently. A pilot-operated solenoid valve uses electric power to open or close a small hole that controls the valve.

  • The fluid pressure itself helps open or close the main valve.

  • This design reduces the force the solenoid needs to exert, enabling operation under high pressures or larger flows.

2.4 Electrical Requirements

  • Voltage: Solenoid valves can be powered by AC or DC voltage, common values include 12V DC, 24V DC, 110V AC, 220V AC.

  • Power consumption: Ranges from a few watts to tens of watts depending on size and type.

  • Duty cycle: Some valves can operate continuously, while others work only for short periods.

2.5 Advantages of Electromechanical Control

  • Speed: Solenoid valves respond in milliseconds.

  • Automation: Enables remote control and integration into automated systems.

  • Precision: Accurate control of fluid on/off states.

3. Types of Solenoid Valves

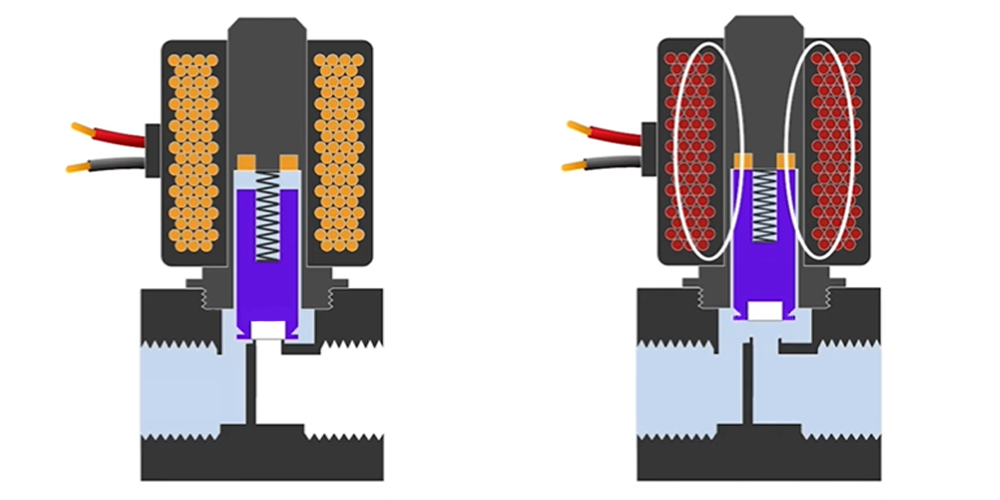

What Is a Solenoid Valve5

3.1 Direct-Acting Solenoid Valves

Direct-acting valves have a simple structure. The solenoid coil directly moves the plunger to open or close the valve.

  • Advantages:

  • No minimum pressure difference required to operate.

  • Suitable for low flow rates and low pressures (typically up to 10 bar).

  • Swift switching capability.

  • Applications:

  • Laboratory equipment, medical devices, small fluid circuits.

  • What Is a Solenoid Valve6

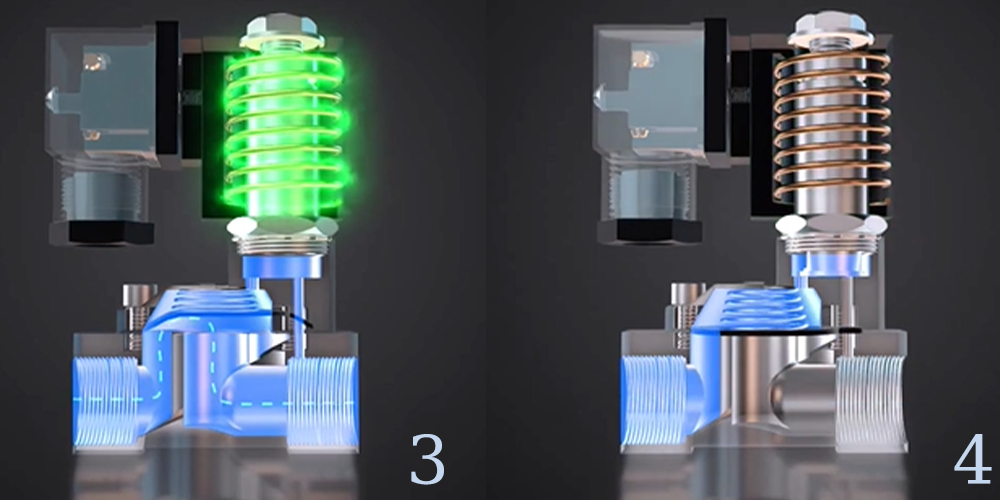

  • What Is a Solenoid Valve7

3.2 Pilot-Operated Solenoid Valves

These valves handle higher pressure and flow rates.

  • The solenoid only operates a small pilot orifice.

  • The main valve opens or closes based on fluid pressure acting on a diaphragm or piston.

  • Typically require a minimum pressure differential (e.g., 0.2 to 0.5 bar) to function.

Advantages:

  • Can handle high pressure (up to hundreds of bars).

  • Larger valve sizes and flow rates possible.

  • Energy-efficient as solenoid only actuates pilot.

Applications:

  • Industrial process control, water treatment plants, HVAC chillers.

3.3 Two-Way Solenoid Valves

  • They consist of one inlet port and one outlet port.

  • Simple on/off control of flow.

  • Usually normally closed to stop fluid flow when not energized.

Common Uses:

  • Water supply control, pneumatic actuators, fuel systems.

3.4 Three-Way Solenoid Valves

  • They have three ports: one inlet and two outlets, or two inlets and one outlet.

  • Used to switch flow between two paths or to mix/divert fluids.

  • You can configure them as normally closed or normally open.

Applications:

  • Air control systems, vacuum systems, pneumatic cylinders.

3.5 Four-Way Solenoid Valves

  • Usually used to control double-acting pneumatic cylinders.

  • Provide two outlets and two inlets for pressurizing and exhausting.

  • Often found in industrial automation and robotics.

3.6 Other Special Types

  • Explosion-proof valves: Designed for hazardous environments.

  • High-temperature valves: Use special materials to withstand extreme heat.

  • Food-grade valves: Manufactured from sanitary materials for hygiene-sensitive industries.

4. Key Components of a Solenoid Valve

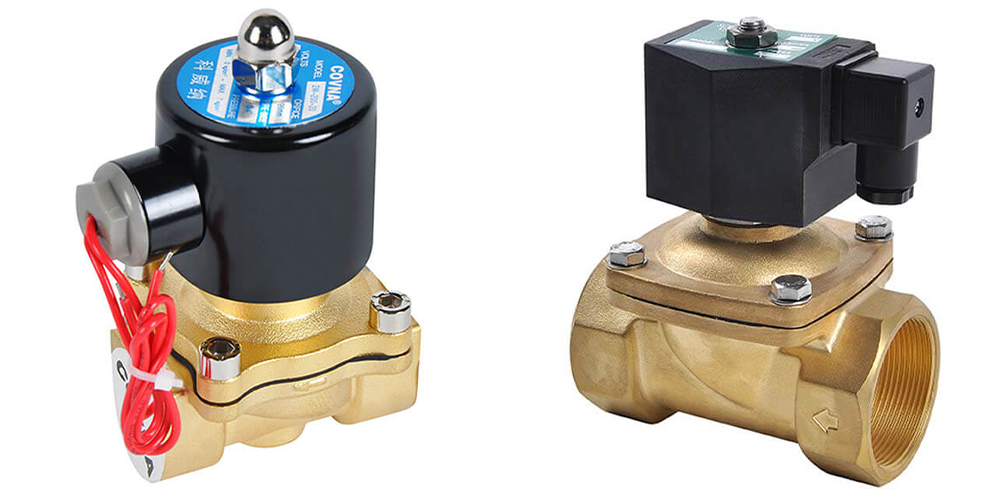

What Is a Solenoid Valve1

4.1 Solenoid Coil

  • Made of insulated copper wire.

  • Encased in a protective housing, often sealed to protect from moisture and dust.

  • Coil design influences power consumption and heat generation.

4.2 Plunger or Armature

  • Usually made of ferromagnetic material.

  • Precisely machined to move smoothly inside the coil.

  • Attached to a valve sealing element.

4.3 Valve Body

  • Made from materials like brass, stainless steel, or plastic depending on application.

  • Contains fluid passages and ports for inlet/outlet.

4.4 Valve Seat and Seal

  • Critical to ensuring tight shut-off.

  • Made from elastomers like Viton, EPDM, or PTFE.

  • Choice depends on fluid compatibility and temperature.

4.5 Spring

  • Provides force to return plunger to default position.

  • Material chosen for corrosion resistance and fatigue life.

5. Common Applications of Solenoid Valves

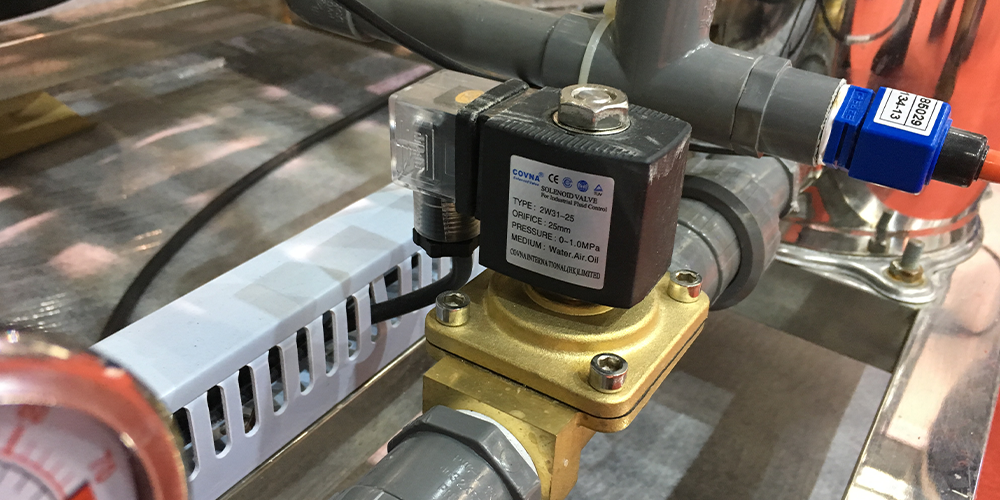

What Is a Solenoid Valve9

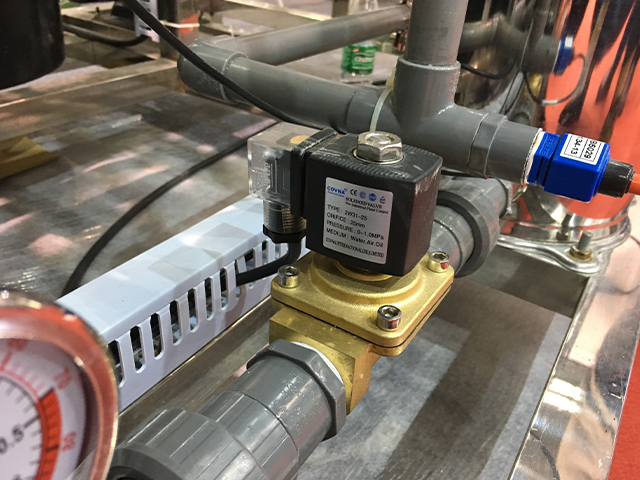

5.1 Industrial Automation

  • Control of pneumatic and hydraulic cylinders.

  • Automated liquid dispensing.

  • Safety shutdown systems.

5.2 Water and Wastewater Treatment

  • Automated valve control for filtration, chemical dosing, and flow regulation.

  • Precise control reduces manual labor and error.

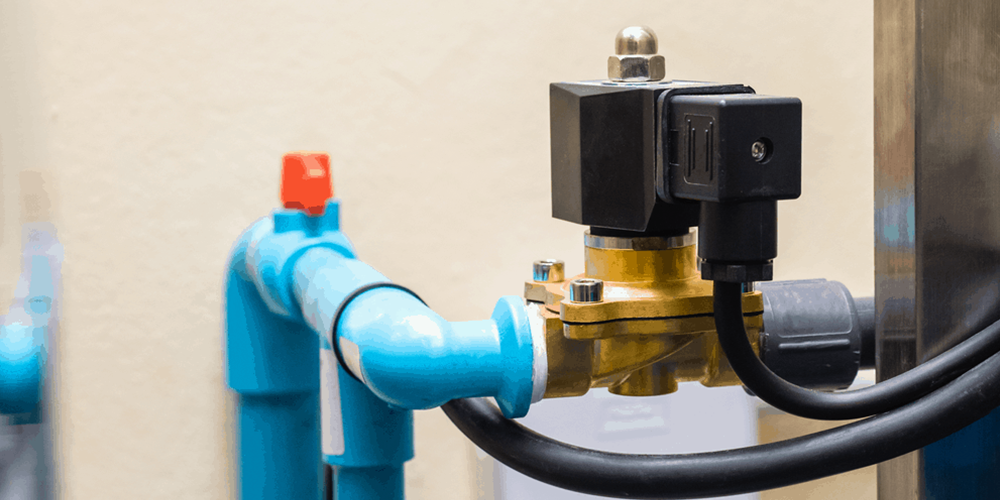

  • What Is a Solenoid Valve8

5.3 HVAC Systems

  • Control of refrigerant flow in cooling and heating systems.

  • Zone control valves for temperature regulation.

5.4 Medical Equipment

  • Precise control of gases and liquids in ventilators, anesthesia machines.

  • Sterile designs for medical fluid systems.

5.5 Automotive

  • • Fuel injection valves.

  • • Transmission control valves.

5.6 Agriculture

  • • Irrigation control, fertilizer injection systems.

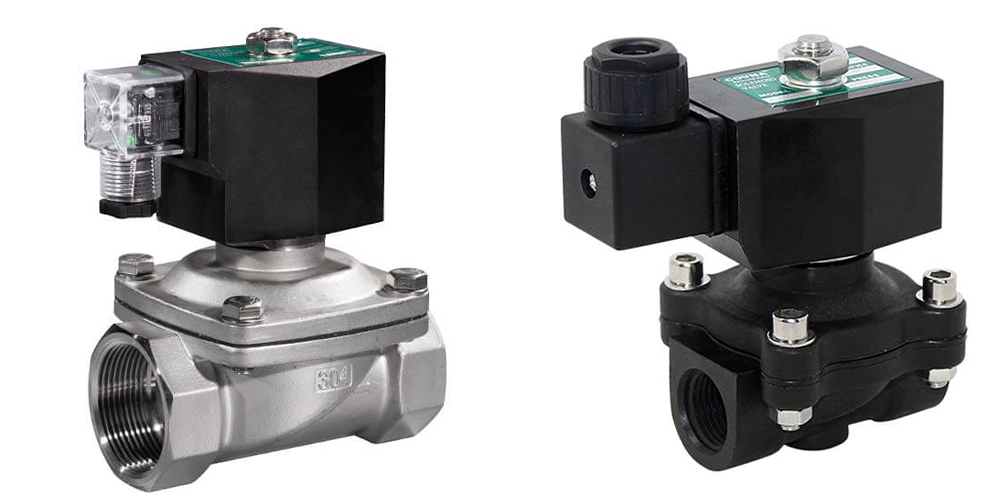

  • What Is a Solenoid Valve2

6. Advantages of Using Solenoid Valves

  • • Automation-ready: Perfect for PLC and SCADA systems integration.

  • • Reduced labor costs: No need for manual valve operation.

  • • Enhanced safety: Remote shutoff capabilities in emergencies.

  • • Compact footprint: Saves space in panel or equipment design.

  • • High reliability: Solid-state control with minimal mechanical wear.

  • • Low power consumption: Important for battery-operated or remote systems.

7. How to Choose the Right Solenoid Valve

When selecting a solenoid valve, consider:

7.1 Fluid Properties

  • • Is the fluid corrosive, abrasive, viscous?

  • • Choose compatible materials and seals.

7.2 Operating Pressure and Flow Rate

  • • Ensure valve is rated for maximum system pressure.

  • • Check Cv (flow coefficient) for required flow capacity.

7.3 Voltage and Power Supply

  • • Match valve coil voltage with available power source.

  • • Consider coil power ratings for continuous or intermittent duty.

7.4 Environmental Conditions

  • • Temperature extremes, moisture, dust, explosion risks.

  • • Choose appropriate enclosure and certifications.

7.5 Size and Port Connections

  • • Flanged, threaded, or compression fittings.

  • • Match pipe sizes and standards.

7.6 Certification and Standards

  • • Industry-specific certifications (UL, CE, ATEX).

  • • Compliance with safety and quality standards.

8. Common Materials Used in Solenoid Valves

Choosing the right materials is critical for solenoid valve performance and longevity, especially when dealing with harsh media or demanding environments.

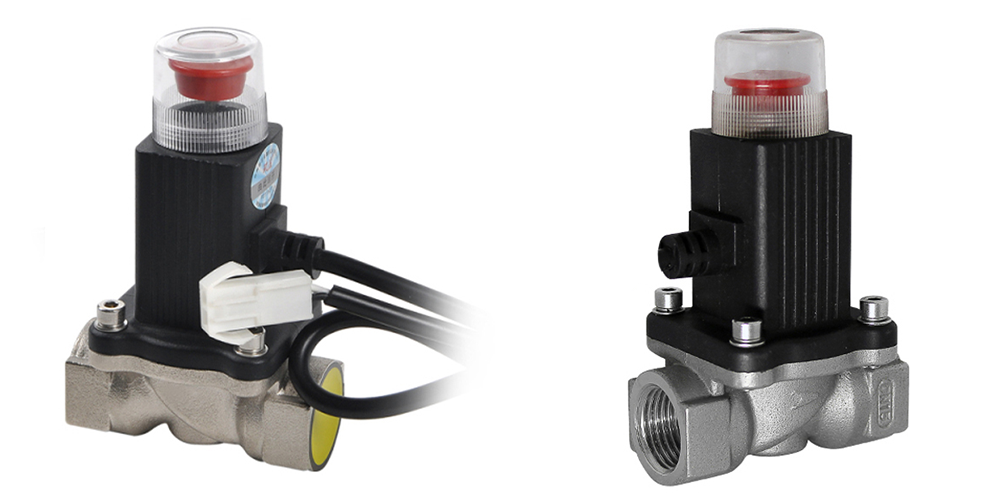

What Is a Solenoid Valve4

8.1 Valve Body Materials

  • Brass:

  • • Widely used for general-purpose valves.

  • • Excellent machinability and corrosion resistance in water and air applications.

  • • Economical choice for low to medium pressure.

  • Stainless Steel (304, 316):

  • • Preferred for corrosive fluids, harsh chemicals, and food-grade applications.

  • • Excellent strength and temperature resistance.

  • • Suitable for high-pressure and sanitary environments.

  • Plastic (PVC, PTFE, Polypropylene):

  • • Lightweight, corrosion-resistant.

  • • Used in chemical processing and water treatment.

  • • Lower pressure and temperature limits.

8.2 Sealing Materials

  • NBR (Nitrile Butadiene Rubber):

  • • Good for oils, water, and air.

  • • Moderate temperature range.

  • Viton (FKM):

  • • High chemical resistance and temperature tolerance.

  • • Suitable for aggressive fluids and high temperature.

  • EPDM (Ethylene Propylene Diene Monomer):

  • • Excellent resistance to hot water, steam, and some chemicals.

  • • Not compatible with oils.

  • PTFE (Teflon):

  • • Outstanding chemical resistance and temperature tolerance.

  • • Very low friction for smooth valve operation.


9. Installation and Maintenance Tips for Solenoid Valves

Proper installation and maintenance are vital to maximize solenoid valve life and performance.

9.1 Installation Guidelines

  • • Flow Direction: Always follow the arrow marked on the valve body for correct flow direction.

  • • Mounting Position: Usually mounted vertically to ensure proper operation, unless specified otherwise.

  • • Electrical Wiring: Use proper connectors and ensure correct voltage and polarity. Protect wiring from moisture and mechanical damage.

  • • Debris Prevention: Install filters or strainers upstream to prevent dirt and particles from damaging valve seats and seals.

  • • Pressure Testing: Check system pressure compatibility before applying power.

9.2 Maintenance Best Practices

  • • Regular Inspection: Check for leaks, unusual noises, or coil heating.

  • • Cleaning: Remove debris and sediment periodically, especially in harsh environments.

  • • Coil Testing: Measure coil resistance and continuity to detect electrical faults.

  • • Seal Replacement: Replace seals and gaskets if worn or damaged to prevent leakage.

  • • Lubrication: Typically, solenoid valves are maintenance-free, but some models may require light lubrication of moving parts.

10. Troubleshooting Common Issues with Solenoid Valves

What Is a Solenoid Valve11

10.1 Valve Fails to Open or Close

  • • Check power supply and coil condition.

  • • Ensure correct voltage and wiring.

  • • Inspect for debris blocking the plunger or valve seat.

  • • Confirm sufficient pressure differential for pilot-operated valves.

  • • Check for spring damage or plunger sticking.

10.2 Coil Overheating

  • • Continuous energizing beyond coil duty cycle.

  • • Incorrect voltage or coil winding damage.

  • • Poor ventilation around coil.

10.3 Leakage

  • • Worn or damaged seals or valve seats.

  • • Foreign particles lodged in sealing surface.

  • • Incorrect installation causing improper sealing.

11. Innovations and Trends in Solenoid Valve Technology

11.1 Energy Efficiency Improvements

  • • Development of low-power coils and latching solenoids to reduce energy consumption.

  • • Use of advanced materials for lighter, more responsive plungers.

11.2 Smart Solenoid Valves

  • • Integration of sensors and IoT capabilities for remote monitoring and diagnostics.

  • • Predictive maintenance via real-time data collection.

11.3 Environmentally Friendly Designs

  • • Valves designed for zero-leakage and lower emissions.

  • • Use of recyclable and non-toxic materials.

12. Why Choose Us for Your Solenoid Valve Needs?

As a leading valve manufacturer, we understand the critical role that solenoid valves play in your systems. Here’s why our products stand out:

12.1 Superior Quality and Reliability

  • • We use premium-grade materials meeting international standards.

  • • Rigorous quality control processes ensure consistent valve performance.

12.2 Customization Capability

  • • Tailor-made valve designs to suit your specific applications and fluid types.

  • • Options for various voltages, pressures, port sizes, and materials.

12.3 Competitive Pricing and Support

  • • Cost-effective manufacturing without compromising quality.

  • • Dedicated technical support and fast delivery services.

12.4 Proven Industry Expertise

  • • Decades of experience serving industries such as water treatment, HVAC, automotive, and more.

  • • Trusted by global clients who demand precision and durability.

13. How to Order and Get Support

What Is a Solenoid Valve12

13.1 Consultation and Selection Assistance

Our expert sales team will help you select the right solenoid valve based on your technical requirements.

13.2 Sample and Testing

We offer samples for testing and evaluation before you place bulk orders.

13.3 After-Sales Service

  • • Warranty coverage and repair support.

  • • Technical advice and troubleshooting assistance.

Conclusion

Knowing what a solenoid valve is and how it works helps you pick the right valve for your needs. This makes your system work better and last longer. Whether you need valves for machines, fluid control, or special tasks, our good-quality solenoid valves are the right choice.

Contact us today to discuss your requirements and get a tailored quote!


Contact
  +86-17317982006
  +86-17317982006
  sales@covnav.com
  sales@covnav.com
 Longchang Micro-Changyuan, Dongcheng District Dongguan City, China
Explore
Support
Follow Us
Copyright © 2025 COVNA | Powered by COVNA
