What Is a Non-Return Valve?
Introduction: The Unsung Hero in Fluid Systems
In pipes, a non-return valve is a small part that makes sure liquids or gases only go one way and don’t flow backwards. Even though it’s small, it plays an important role in keeping systems safe and running smoothly. You’ll find it used in many places like water plants, air conditioning, medicine, and food factories.
What Is a Non-Return Valve?

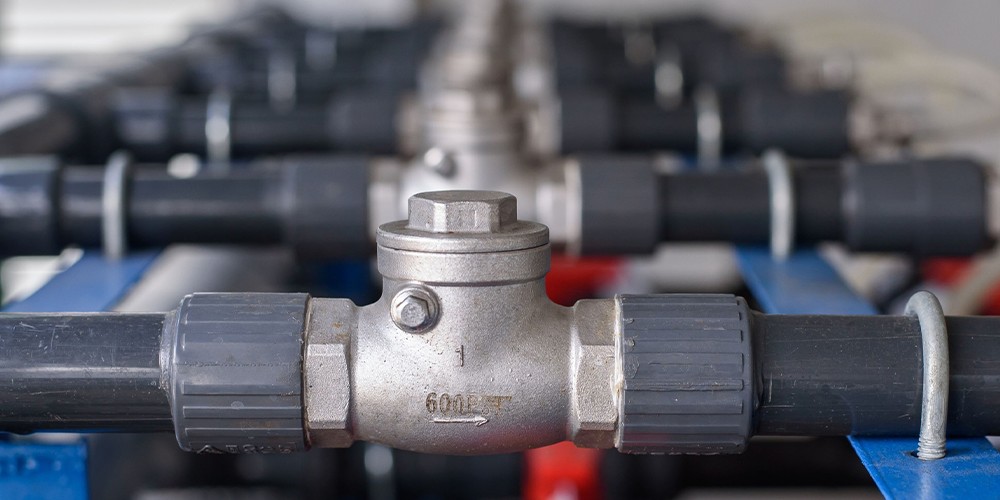

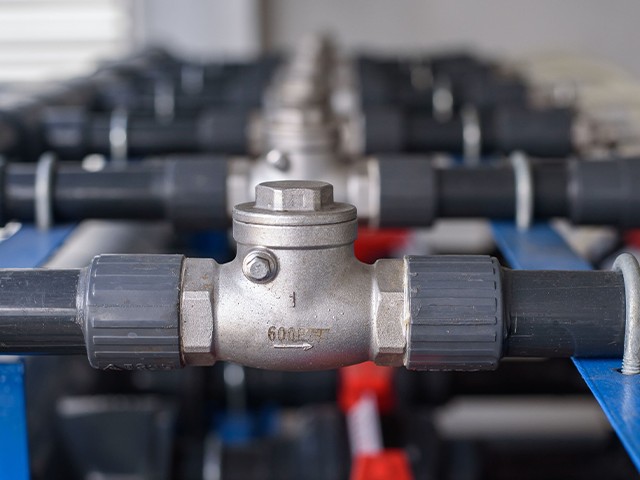

A non-return valve (or check valve) is a device that lets liquid or gas go one way, and stops it from coming back the other way. This ensures that fluids do not return to the source, which could damage equipment or cause contamination.
The valve functions passively. That means it doesn’t require an actuator, controller, or manual intervention to work. The direction and pressure of the flow alone determine whether the valve is open or shut.
️ How Does a Non-Return Valve Work?
Non-return valves operate based on differential pressure. When the inlet pressure exceeds the outlet pressure, the valve opens. If the pressure equalizes or reverses, the valve closes.
This closure mechanism may be driven by:
• Spring force (in spring-loaded designs)
• Gravity (in vertical lift designs)
• Back pressure (in swing types)
The immediate closure prevents:
• Reverse flow
• Pressure surges
• Water hammer
• Contamination in clean lines
Types of Non-Return Valves and Their Features
Choosing the right non-return valve depends on your application. Here's a breakdown:

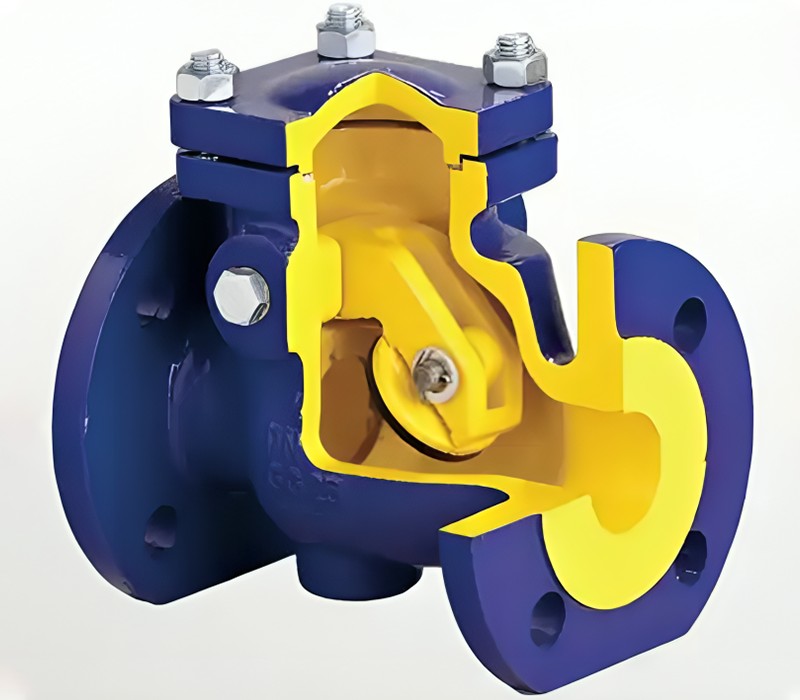

1. Swing Check Valve
• Uses a hinged disc
• Ideal for horizontal lines
• Suitable for larger pipes with slower flow rates

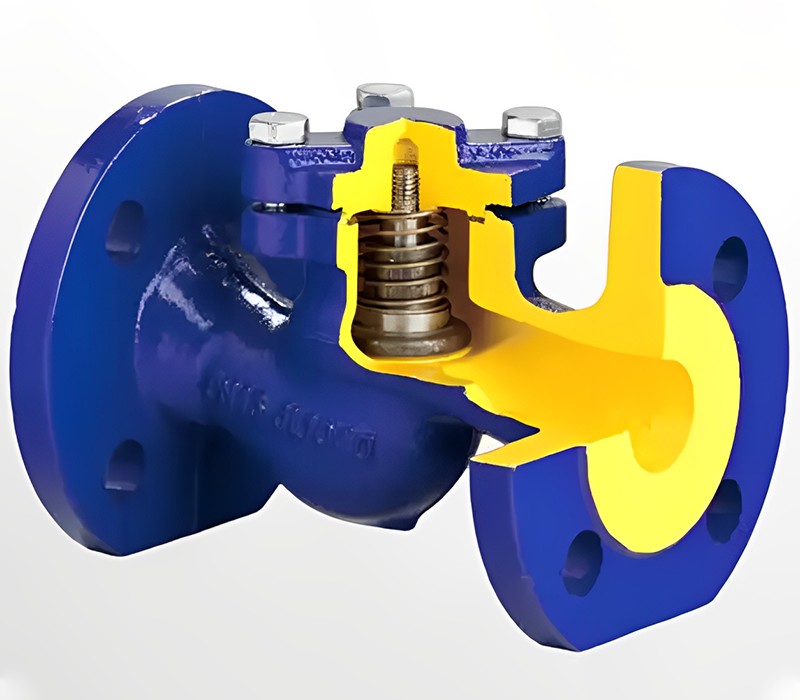

2. Lift Check Valve
• The disc lifts vertically under pressure
• Often installed in vertical lines
• Provides quick shut-off

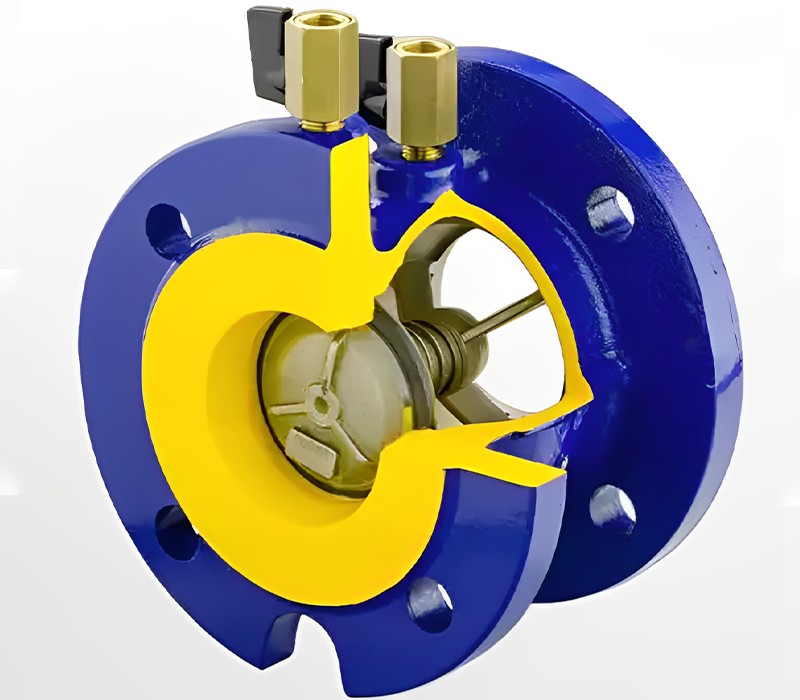

3. Spring-Loaded Inline Check Valve
• Compact, efficient
• Fast-acting with minimal leakage
• Used in high-pressure systems

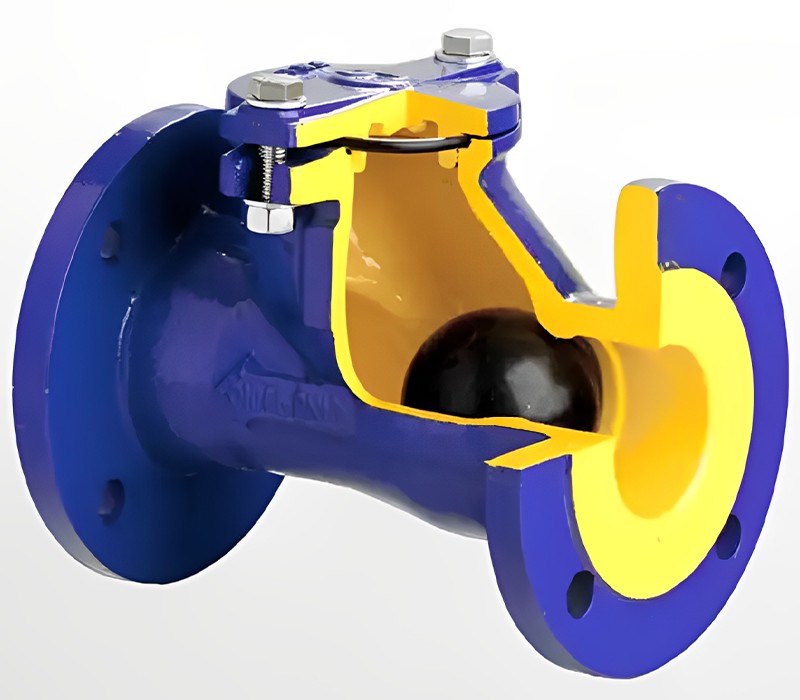

4. Ball Check Valve
• A ball moves within a chamber
• Simple, reliable, self-cleaning
• Good for viscous fluids or slurries

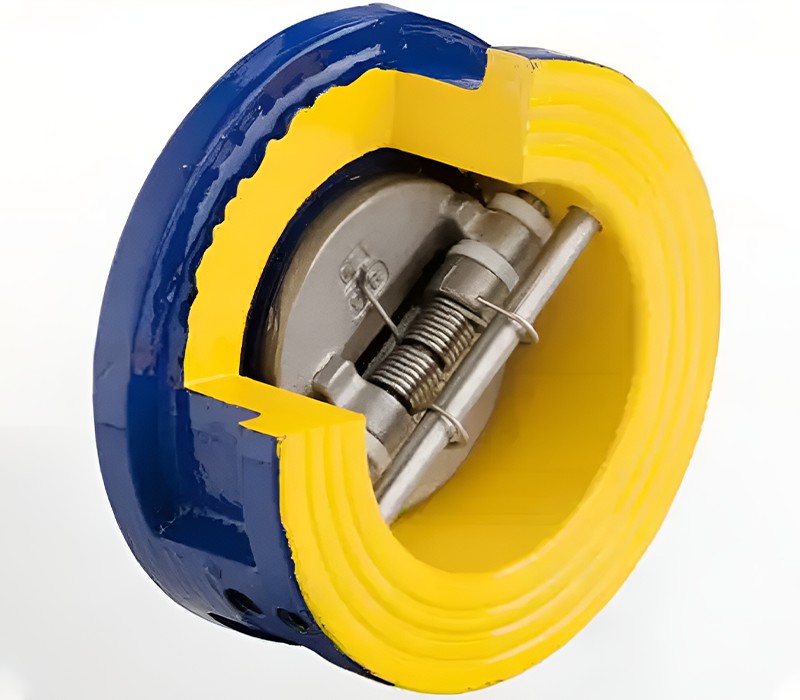

5. Dual Plate or Wafer Check Valve
• Features two semi-circular plates
• Compact and lightweight
• Designed for energy efficiency in large pipelines
Where Are Non-Return Valves Used?
Industrial Applications

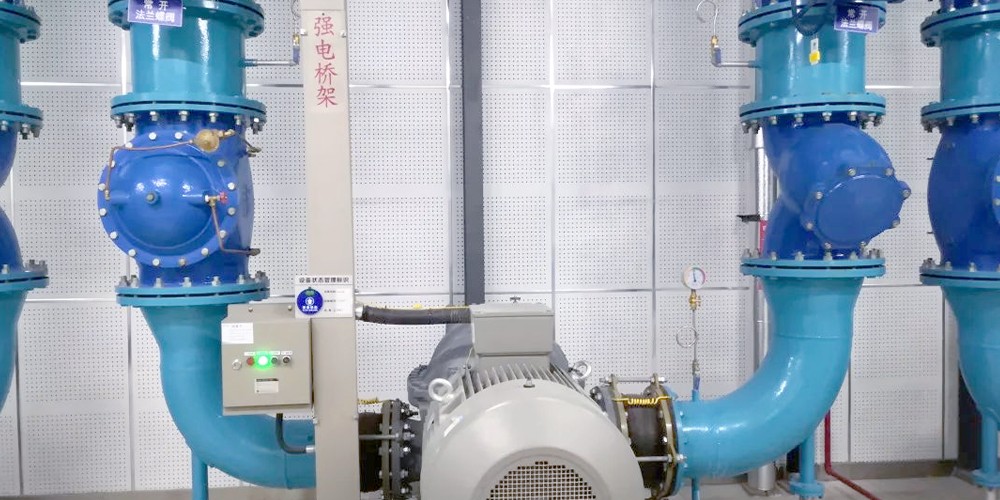

• Protecting pumps from backflow damage
• Preventing pressure surges in compressed air systems
• Used in hydraulic and chemical dosing systems
Domestic and Commercial Plumbing
• Stops contaminated water from re-entering public water supplies
• Used in heating systems to isolate hot water zones
Hygienic and Clean-In-Place (CIP) Systems
• Used in the pharmaceutical, beverage, and dairy industries
• Ensures process media doesn’t backtrack or cross-contaminate
️ HVAC and Steam Systems
• Maintains unidirectional flow in boiler systems
• Prevents circulation issues in multi-loop systems
Important Selection Factors
When choosing a non-return valve, consider the following:
Factor
Why It Matters
Material Compatibility
Corrosion resistance for aggressive or chemical fluids
Flow Orientation
Some valves work better horizontally, others vertically
Pressure Rating
Must handle both peak and sustained system pressures
Maintenance Access
Choose easily serviceable designs for critical applications
Crack Pressure
The minimum pressure required to open the valve
Common Problems with Incorrect Valve Choice
• Water hammer from slow-closing valves
• Premature wear due to improper material selection
• Excessive pressure loss in poorly sized valves
• Flow restriction from debris in lift-type or swing valves
That's why consulting with an experienced manufacturer can ensure you avoid costly mistakes.
Why Choose Our Non-Return Valves?
As a leading valve manufacturer, we combine engineering precision with reliability. Our non-return valve solutions are:
✅ Manufactured with high-grade stainless steel, brass, and polymer options
✅ Designed for low cracking pressure and high sealing performance
✅ Tested for WRAS, CE, and ISO standards
✅ Offered in custom configurations for OEMs and EPC contractors
Whether you need one valve for a prototype or thousands for a project, we’re equipped to deliver.
Use Case: Which Valve for Which Application?
Industry
Recommended Valve Type
Reason
Water Treatment
Swing Check or Dual Plate
Large flow rates, minimal pressure loss
Food & Beverage
Sanitary Spring Check Valve
Easy to clean, hygienic design
Compressed Air
Inline Spring Check Valve
Fast closing, compact size
Marine
Ball Check Valve
Handles dirty fluids, less maintenance
Oil & Gas
Lift or Dual Plate Check Valve
Handles high pressure, reliability
Final Thoughts: Small Valve, Huge Impact
A non-return valve might be a small component in your overall system, but its role is vital. It protects your assets, ensures compliance, maintains system efficiency, and most importantly—prevents failure.
