What Is a Ball Valve?
When it comes to controlling the flow of liquids or gases in a piping system, ball valves are one of the most popular and reliable choices worldwide. But what exactly is a it? How does it work? And why should you consider choosing a it for your industrial or commercial applications? This article provides a comprehensive, easy-to-understand explanation about it, helping you make informed decisions when purchasing valves for your needs.
What Is a Ball Valve?
A ball valve is a type of quarter-turn valve that uses a hollow, perforated, and pivoting sphere (the “ball”) to control the flow of fluids through a pipe. By rotating the ball 90 degrees (a quarter turn), the valve can be opened or closed. When the hole in the ball aligns with the pipeline, the valve is open, allowing fluid to flow freely. When the ball is rotated so the hole is perpendicular to the pipeline, the valve is closed, blocking flow.
How Does a Ball Valve Work?
• The ball inside the valve body has a bore (a hole) drilled through its center.
• The valve stem connects the ball to an external handle or actuator.
• When you turn the handle 90°, the ball rotates accordingly.
• In the open position, fluid flows through the hollow part of the ball.
• In the closed position, the solid side of the ball blocks the flow completely.
This simple design allows ball valves to provide a tight seal with minimal leakage, making them ideal for shut-off and control applications.

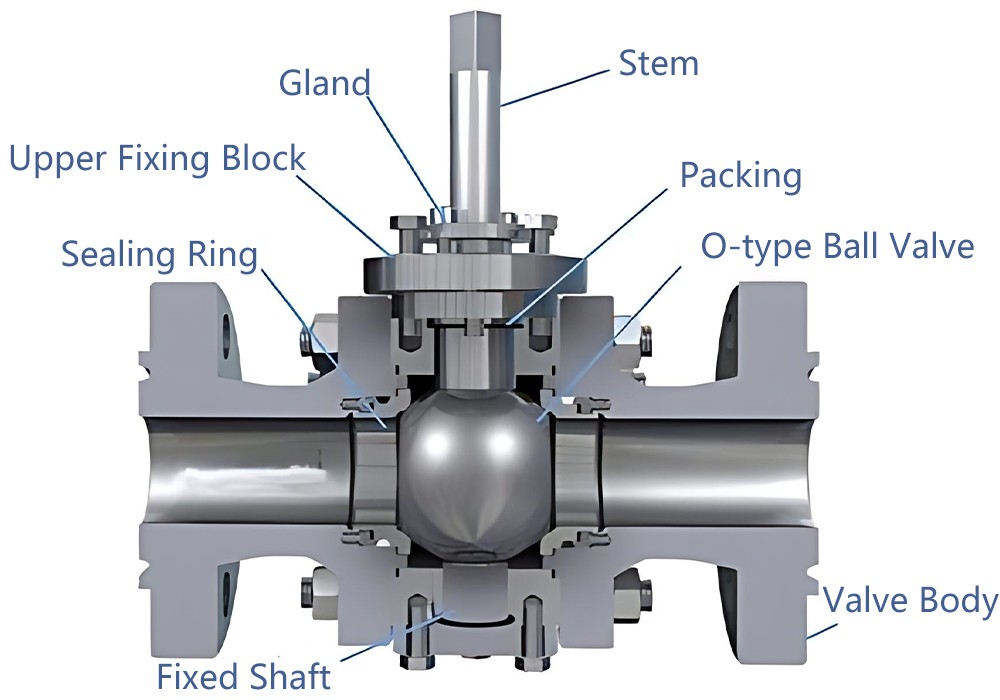

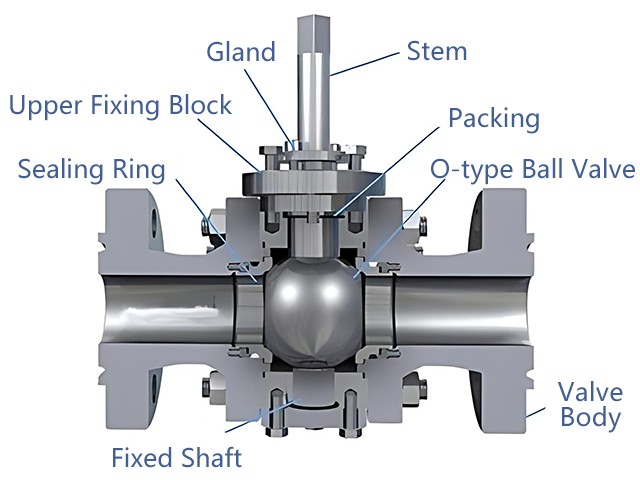

Key Components of a Ball Valve
• Valve Body: The outer shell that houses the internal parts, made of materials like stainless steel, brass, or carbon steel.
• Ball: The spherical component with a central hole, usually made from corrosion-resistant materials.
• Seats: Soft or metal rings that seal around the ball to prevent leaks.
• Stem: Connects the ball to the handle or actuator.
• Handle/Actuator: Used to manually or automatically rotate the ball.
Types of Ball Valves
Ball valves come in several designs tailored to different needs:
• Floating Ball Valve: The ball is held between two flexible seats and can move slightly downstream to seal tighter when closed.
• Trunnion Ball Valve: The ball is anchored by trunnions (supports) at the top and bottom, reducing stress and allowing for larger sizes and higher pressures.
• Full Port Ball Valve: The bore diameter is equal to the pipe diameter, offering minimal flow resistance.
• Reduced Port Ball Valve: The bore diameter is smaller than the pipe diameter, causing some flow restriction.
• Three-Way Ball Valve: Has three ports, used to divert or mix flows.
Advantages of Ball Valves
• Quick and Easy Operation: One quarter-turn fully opens or closes the valve.
• Tight Sealing: Ball valves provide excellent sealing, preventing leaks even in high-pressure systems.
• Durability: With few moving parts and robust construction, ball valves have a long service life.
• Versatility: Suitable for gases, liquids, corrosive substances, and even slurries.
• Low Pressure Drop: Full port ball valves offer minimal resistance to flow.
Common Applications of Ball Valves
Ball valves are widely used in:
• Oil and Gas Industry: For controlling crude oil, natural gas pipelines.
• Water and Wastewater Systems: Shutoff and flow control.
• Chemical Processing: Handling corrosive fluids.
• HVAC Systems: Heating and cooling flow management.
• Pharmaceutical and Food Industries: Hygienic applications.
• Residential Plumbing: Shutoff valves in household water systems.
Maintenance and Troubleshooting Tips
Proper maintenance is key to ensuring the long-term reliability and performance of ball valves. Regular inspection should focus on the valve seats and seals, as these are common wear points. Lubricating the stem and other moving parts helps maintain smooth operation. If the valve exhibits leakage or difficulty in turning, it may be necessary to replace the seals or seats. Additionally, avoid using ball valves in systems with debris or particles that could damage the sealing surfaces.
Material Selection and Its Importance
Choosing the right material for your ball valve is crucial based on your application’s operating environment. Common materials include stainless steel, brass, carbon steel, and sometimes plastic for lower pressure uses. For corrosive fluids or extreme temperatures, stainless steel or specialized alloys provide better resistance and longevity. Our valves are made with carefully selected materials to withstand harsh industrial conditions while ensuring safety and durability.
How to Choose the Right Ball Valve for Your Needs
Selecting a ball valve depends on several factors:
• Pressure and Temperature Ratings: Ensure the valve meets the maximum system pressure and temperature.
• Size and Port Type: Choose full port or reduced port according to flow requirements.
• Material Compatibility: Confirm valve materials are compatible with the fluid or gas.

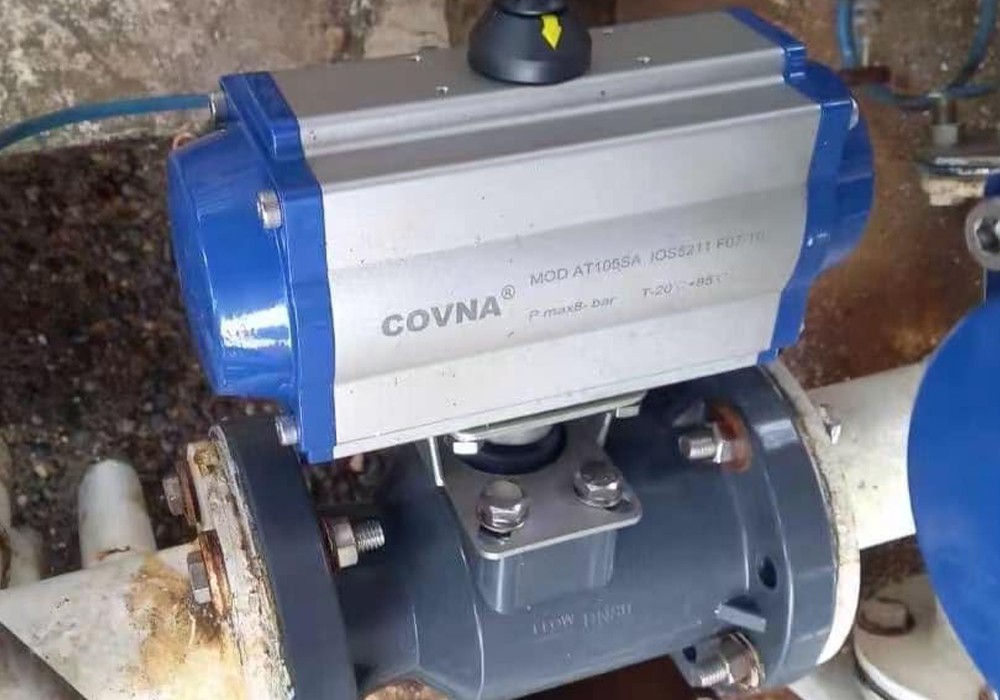

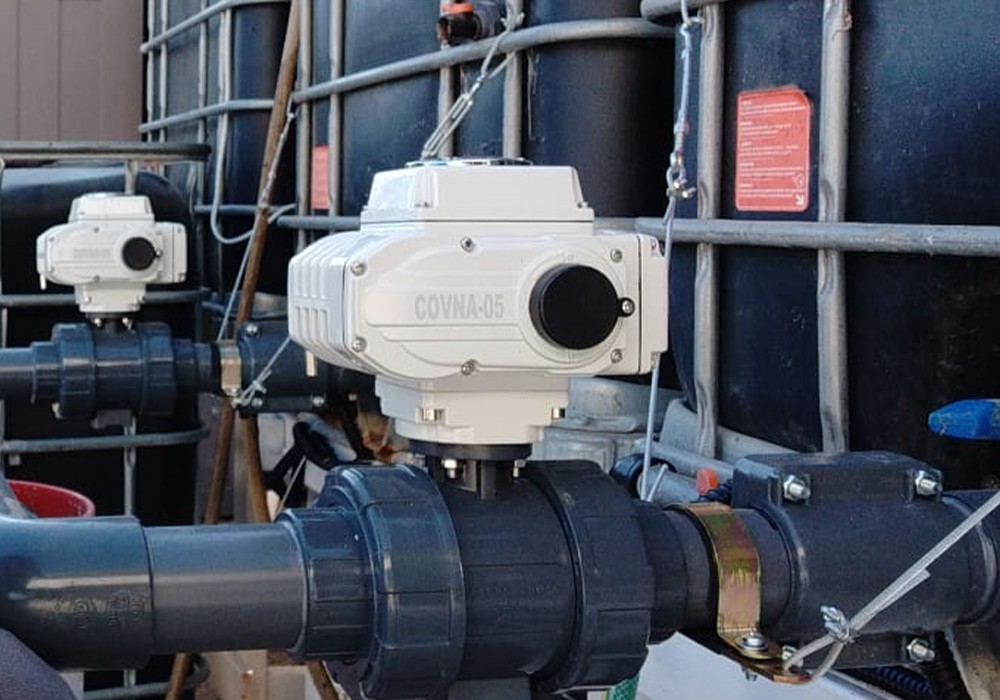

• Operation Mode: Manual, electric, or pneumatic actuators depending on automation needs.
• Industry Standards: Valves should comply with relevant standards (API, ISO, CE) to ensure quality and safety.
Our experienced team can assist you in choosing the perfect valve that fits your system and application requirements.
Why Choose Our Ball Valves?
As a leading valve manufacturer, we provide high-quality ball valves designed and manufactured to meet international standards such as API, ISO, and CE. Our valves offer:
• Wide range of materials suitable for different industrial needs.
• Customized solutions with different sizes and pressure ratings.
• Strict quality testing before delivery.
• Expert technical support to help you select the best valve for your application.
Summary
A ball valve is a simple yet highly effective device for controlling fluid flow with quick operation, reliable sealing, and broad applicability. Whether you need valves for high-pressure industrial pipelines or everyday plumbing systems, ball valves offer a versatile and durable solution.
If you want to ensure reliable flow control and minimize maintenance, consider investing in quality ball valves from a trusted manufacturer. Contact us today to discuss your specific needs and get a custom quote!
