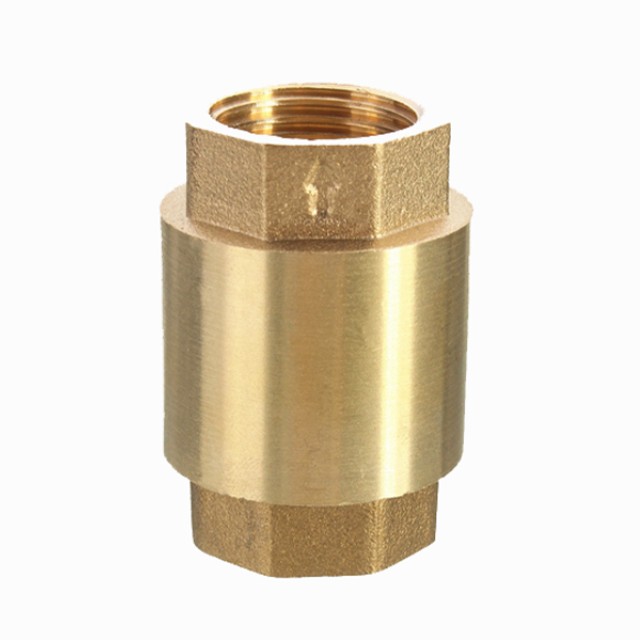

Vertical Threaded Brass Check Valve

This Vertical Brass Check Valve is designed for vertical installations to ensure one-way flow of fluids or gases. Made from high-quality forged brass, it offers excellent resistance to corrosion, high temperatures, and pressure variations. The spring-loaded mechanism ensures quick shut-off to prevent reverse flow.

Availability:



Inquire

Product Category

Description

COVNA Factory

Application

Certification

FAQ

Video

Parameters

Vertical Threaded Brass Check Valve3

✅ Technical Specifications

Item	Description
Product Type	Vertical Spring Check Valve
Body Material	Forged Brass (CW617N or equivalent)
Seal Material	NBR (standard), optional PTFE
Connection Type	Female Threaded (BSP or NPT)
Installation Position	Vertical (flow upwards)
Working Pressure	PN16 (16 bar), optional PN25
Operating Temperature	-10°C to +100°C
Cracking Pressure	~0.2 bar
Size Range	1/4”~ 3”
Flow Direction	Indicated by arrow on the body

✅ Key Features

Brass Body: High durability, corrosion-resistant
Spring-Loaded Disc: Fast response, ensures no backflow
Threaded Ends: Easy installation and replacement
Compact Size: Ideal for tight vertical spaces
️ Leakproof Seal: NBR or PTFE options for fluid compatibility

COVNA Factory

COVNA Factory Real Shot -1

COVNA Factory Real Shot -2

Vertical Threaded Brass Check Valve7 COVNA Factory Real Shot -3

COVNA Factory Real Shot -4

COVNA Factory Real Shot -5

COVNA Factory Real Shot -6

✅ Applications

• Domestic and commercial plumbing

• Water supply systems

• Heating and cooling systems (HVAC)

• Irrigation and agriculture

• Air compressors and pneumatic systems

• Industrial water treatment and fluid distribution

Certification

AGA

ISO14001

IAF

SGS

CE

FDA

RoHS

SGS

Optional Configurations

• Thread Standard: BSP (default) or NPT

• Higher Pressure Models: Available upon request

• Custom Logo/Marking: OEM available for bulk orders

Installation Tips

• Must be installed vertically with flow upward

• Use appropriate thread sealant (PTFE tape or paste)

• Ensure the arrow marking aligns with intended flow direction

• Not suitable for horizontal installation unless specified

❓ Frequently Asked Questions (FAQ)

Q1: Can this brass check valve be installed horizontally?

A: This valve is specifically designed for vertical installation with upward flow direction. For horizontal installations, we recommend using a universal inline check valve instead. Always refer to the arrow mark on the body to ensure correct flow direction.

Q2: What fluids is this valve compatible with?

A: The valve is suitable for water, compressed air, and neutral fluids (non-aggressive). For use with chemicals or corrosive media, please contact us to confirm material compatibility or request a PTFE seal upgrade.

Q3: What is the difference between PN16 and PN25?

A: PN16 and PN25 refer to nominal pressure ratings.

PN16: Maximum working pressure 16 bar
PN25: Maximum working pressure 25 bar
Choose PN25 if your system operates under higher pressure conditions.

Q4: What is the minimum opening (cracking) pressure?

A: The valve typically opens at a cracking pressure of approximately 0.2 bar. This allows it to function efficiently in low-pressure systems.

Need Help Choosing the Right Size?

Our technical team is here to assist you in selecting the correct size and configuration for your system. Contact us now for bulk pricing, datasheets, or OEM service.
