How to Install a Gate Valve ?

Gate valves are one of the most commonly used types of valves in both residential and industrial piping systems. Gate valves provide unobstructed flow when fully open and ensure completeshutoff when closed. Installing a gate valve the right way helps your system run well and last long.

In this comprehensive article, we'll cover everything you need to know, including:

• What a gate valve is

• • Required tools and materials

• • A detailed step-by-step installation guide

• • Common mistakes to avoid

• • Maintenance tips

• • And why choosing a high-quality valve from a trusted manufacturer makes all the difference

Let’s dive in.

1. What Is a Gate Valve?

A gate valve works by moving a ‘gate’ up or down inside the valve to start or stop the flow of water or gas through a pipe. When you fully open the gate valve, the gate moves out of the flow path, allowing the fluid to pass with minimal resistance. When closed, it provides a tight seal to stop flow completely.

Common Applications:

• • Water supply and distribution systems

• • Oil and gas pipelines

• • HVAC systems

• • Chemical processing

• • Industrial manufacturing

• • Fire protection networks

️ Pro Tip: Gate valves are not recommended for throttling purposes. They are best used in either fully open or fully closed positions.

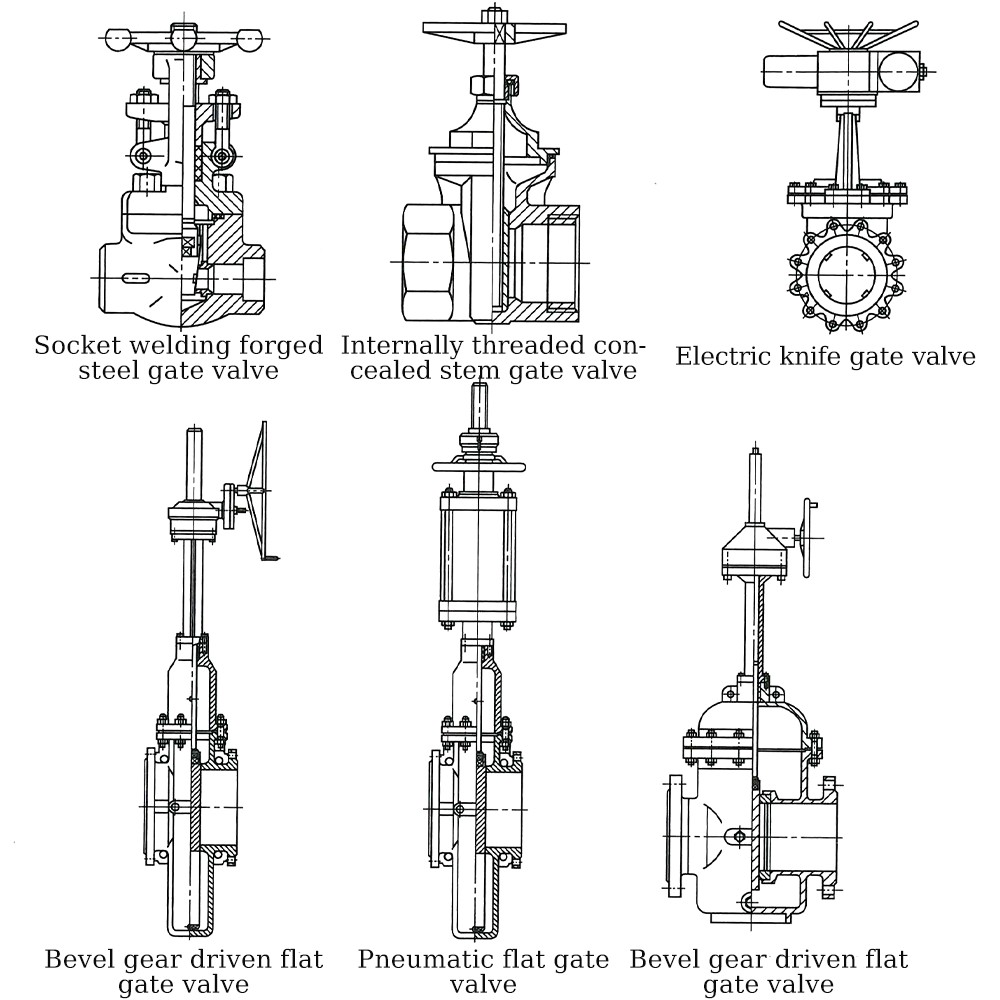

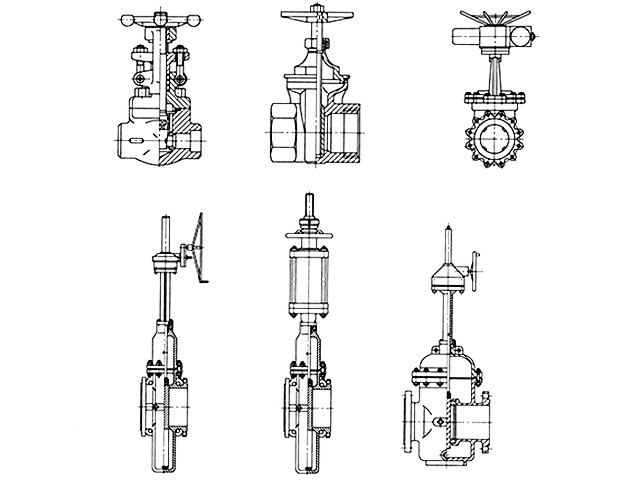

2. Types of Gate Valves

Before installation, it's important to choose the right valve type based on your system's requirements.

Based on Disk Type:

• • Solid wedge: Robust and suitable for most services.

• • Flexible wedge: Accommodates thermal expansion and contraction.

• • Split wedge or parallel disk: Suitable for low-pressure applications and non-condensable gases.

Based on End Connection:

• • Flanged gate valves: Easy to install and maintain; ideal for large pipelines.

• • Threaded gate valves: Compact design, ideal for small-diameter piping systems.

• • Welded gate valves: Provide permanent connection; used in high-pressure applications.

3. Tools and Materials Required for Installation

Gathering the right tools and materials ahead of time is essential for a smooth installation.

You'll Need:

• • Gate valve (properly rated for pressure, temperature, and medium)

• • Pipe flanges or threaded connections

• • Compatible gaskets (for flanged valves)

• • Pipe wrenches

• • Torque wrench (for flanged valves)

• • PTFE tape (for threaded valves)

• • Lubricant or anti-seize compound

• • Cleaning supplies (brush, rags, solvent)

4. Pre-Installation Checklist

Verify Specifications:

• • Pressure rating (PSI/bar)

• • Pipe size compatibility

• • Material suitability (e.g., stainless steel, brass, ductile iron)

Inspect the Valve:

• • Check for visible damage or missing parts.

• • Ensure that the gate operates smoothly without obstruction.

Clean the Piping System:

• • Remove rust, debris, or oil from pipe ends.

• • Thoroughly flush the pipeline prior to installation.

Shut Down the System:

• • Isolate and depressurize the line.

• • Drain the fluid from the section you will be working on.

5. Step-by-Step Guide: How to Install a Gate Valve

Step 1: Align the Valve

Make sure the valve and pipeline are aligned horizontally or vertically, depending on your system layout. The valve stem should be easily accessible for future operation and maintenance.

Step 2: Install the Valve

For Flanged Gate Valves:

        • Insert the valve between the two pipe flanges.

        • Position gaskets on both sides of the valve.

        • Align the bolt holes carefully and insert the bolts accordingly.

        • Tighten bolts in a cross pattern to distribute pressure evenly.

        • Use a torque wrench to apply the manufacturer-recommended torque values.

For Threaded Gate Valves:

       • Apply PTFE tape or sealant to the male threads.

       • Thread the valve onto the pipe by hand.

       • Use a wrench to tighten the bolts, ensuring not to overtighten.

For Welded Gate Valves:

• • Verify accurate alignment to ensure proper installation.

• • Adhere strictly to all welding safety protocols.

• • Allow time for cooling and conduct a pressure test afterward.

Step 3: Pressure Test and Inspection

• Gradually fill the pipeline with fluid.

• Inspect the valve body, stem, and joints thoroughly for any signs of leakage.

• Open and close the valve fully to ensure smooth operation.

• Conduct a hydrostatic or pneumatic test if specified by project standards.

6. Common Installation Mistakes to Avoid

Even experienced technicians sometimes make avoidable errors. Be mindful of the following:

Mistake	Consequence
Misalignment of valve and pipes	Leakage, stress on valve
Using incorrect gasket material	Premature failure
Overtightening bolts or threads	Valve damage
Installing valve in wrong orientation	Operation difficulty
Skipping pressure test	Undetected leak risks

7. Maintenance Tips for Gate Valves

While gate valves are low-maintenance, regular inspections can prolong their service life.

• • Monthly: Operate valve fully open and closed to prevent sticking.

• • Quarterly: Inspect for corrosion, leaks, or damage.

• • Annually: Conduct full visual inspection; consider resealing or replacing gaskets if signs of wear appear.

Always keep a valve maintenance log—especially for industrial systems.

8. Frequently Asked Questions (FAQ)

Q: Can I install a gate valve in any direction?

A: Most gate valves are bidirectional, but always check the flow direction mark. Always install the valve with the stem pointing upward, as this is the preferred method.

Q: Should I use Teflon tape on threaded gate valves?

A: Yes. Apply PTFE tape or pipe sealant to ensure leak-free joints.

Q: What is the best material for water gate valves?

A: Manufacturers commonly use brass, bronze, or stainless steel for potable water applications. For industrial water systems, ductile iron with epoxy lining is ideal.

9. Why Choose Our Gate Valves?

We are a professional valve manufacturer committed to delivering reliable, high-performance gate valves for diverse applications. Here's why our customers trust us:

✅ Built for Installers

• • Standard-compliant dimensions (ANSI, DIN, JIS)

• • Easy-to-align body and flange face

• • Anti-seize stem design

Industrial Durability

• • Pressure ratings from 150 to 2500 class

• • Suitable for water, steam, oil, gas, and corrosive media

• • Available in stainless steel, carbon steel, brass, and more

Global Certification

• • ISO 9001:2015

• • CE, API, WRAS, NSF (depending on model)

Full Support

• • Installation guidance

• • Custom valve design for OEMs

• • Fast delivery and after-sales service

Ready to get the most out of your pipeline system? Please contact us to request a quote, product catalog, or technical consultation.

10. Conclusion: Install With Confidence

Installing a gate valve is more than just joining pipes. It make sure your system stays, efficient, and working well. By following the right steps and using good materials, you can avoid leaks, pressure problems, and costly downtime.

✅ We engineer valves you can trust for performance. Choose precision-manufactured gate valves that installers love and industries rely on.
