How Does a Non-Return Valve Work?

In the world of fluid control, safety and efficiency are everything. "In systems like chemical plants, water pipes, or large machines, it’s important to control which way things flow. Non-return valves help by letting liquid or gas move in only one direction—and stopping it from going backward. That’s where non-return valves (NRVs) — also called check valves — come into play.

But how exactly do they work? What types exist? And how do you choose the right one for your application?

In this guide, we’ll explain how non-return valves work and why it’s important to choose a good valve from a company you can trust.

What is a Non-Return Valve?

A non-return valve is a device that lets liquid or gas flow in only one direction and stops it from flowing backward. It opens under pressure from the upstream side and closes if the flow tries to reverse.

These valves are essential for:

• • Protecting equipment from backflow damage

• • Preventing contamination

• • Maintaining process efficiency

People use non-return valves in water pipes, chemical plants, air systems, pumps, fire equipment, and many other places.

How Does a Non-Return Valve Work?

Let’s break the operation down into a step-by-step process.

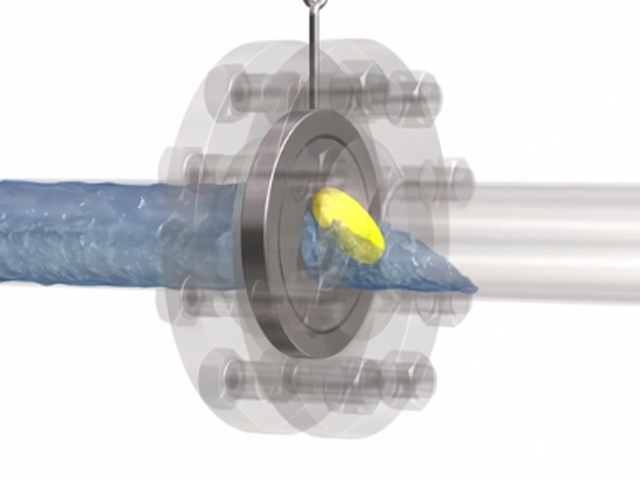

1. Forward Flow Activates the Valve

When fluid flows into the valve from the right side, it pushes on a part inside the valve, like a disc, ball, or spring-loaded plunger. When the fluid pushes hard enough to beat the spring or gravity, the valve opens and lets the flow go through.

2. Backflow Automatically Triggers Closure

If the flow stops or goes backward, the valve closes quickly to stop it from moving the wrong way.

3. No External Actuation Required

One key advantage of non-return valves is that they work on their own. They don’t need electricity, pneumatic pressure, or manual control. This makes them reliable, efficient, and suitable for unattended operations.

The Physics Behind It: Pressure Differential

Non-return valves rely on a pressure differential to function. When the upstream pressure is higher than the downstream pressure, the valve opens. The valve closes when the pressure after it is higher than the pressure before it.

This design protects pumps, avoids contamination, and stabilizes process conditions — especially in systems where pressure fluctuations are common.

Common Types of Non-Return Valves

Each type of non-return valve works in its own way and fits different jobs. Here's a breakdown:

Swing Check Valve

• • Mechanism: Hinged disc swings open with flow.

• • Best for: Water systems, low-pressure pipelines.

• • Pros: Simple design, low pressure drop.

• • Cons: Slow closing speed; not ideal for vertical use.

⬆️ Lift Check Valve

• • Mechanism: A guided disc or piston lifts vertically under pressure.

• • Best for: Clean liquids, vertical lines.

• • Pros: Effective sealing, quick response.

• • Cons: Sensitive to dirt or debris.

⚪ Ball Check Valve

• • Mechanism: A rubber or metal ball moves away from the seat under pressure.

• • Best for: Slurries, viscous fluids, wastewater.

• • Pros: Self-cleaning, suitable for dirty fluids.

• • Cons: May have higher pressure loss.

Spring-Loaded Check Valve

• • Mechanism: Spring keeps the valve shut until enough pressure opens it.

• • Best for: High-pressure systems, gas applications.

• • Pros: Fast closure, minimizes water hammer.

• • Cons: Slightly more complex and expensive.

Dual Plate Check Valve

• • Mechanism: Two half-discs pivot on a central hinge.

• • Best for: Space-limited systems.

• • Pros: Compact, low pressure drop.

• • Cons: May not handle solids well.

Real-World Applications of Non-Return Valves

Non-return valves are everywhere. Here’s where they make a difference:

• • Pumps: Prevent backflow when the pump is off.

• • Boilers: Protect the system from back-pressure.

• • Compressed Air Systems: Ensure air flows in one direction.

• • Fire Protection Systems: Maintain pressure integrity.

• • Water Treatment: Avoid contamination between clean and dirty water.

• • Fuel Pipelines: Prevent reverse fuel movement.

They are especially important in places where backflow can cause costly damage or health problems.

Advantages of Using a Non-Return Valve

Common Issues and How to Avoid Them

While NRVs are simple in function, poor design or wrong selection can lead to failures:

• • Clogging caused by dirt or sediment (solution: use a ball check valve)

• • Chattering or noisy operation caused by low flow rates (solution: properly size the valve)

• • Leakage caused by worn seats or low-quality construction (solution: choose high-grade materials)

Tip: Always check material compatibility, flow direction, and installation orientation before selecting a valve.

Why Quality Matters — Especially from the Manufacturer

The valve industry is filled with suppliers offering low-cost, low-quality options. While cheap NRVs might save upfront costs, they often fail under pressure, leading to leaks, system shutdowns, or even safety hazards.

At COVNA, we design and manufacture non-return valves using:

• • High-grade stainless steel, bronze, brass, and polymer composites

• • Precision machining for tight tolerances

• • Stringent quality control, pressure testing, and certifications

No matter whether you need custom sizes, OEM parts, or reliable valves, we design our valves to last.

How to Select the Right Non-Return Valve

Before purchasing, consider these factors:

• Type of Fluid (clean water, slurry, gas, chemical)

• Flow Direction & Orientation (horizontal vs vertical)

• Pressure & Temperature Ratings

• Size & Flow Rate Requirements

• Space Constraints

• Maintenance Accessibility

Need help choosing the right valve? Our support team can help you choose the right valve based on what you need.

Conclusion: Choose Smart, Choose Quality

Non-return valves are simple but essential. Knowing how they work and picking the right one can keep your system safe, cut downtime, and save you money.

If you're sourcing non-return valves for industrial, commercial, or OEM applications, we’re here to help.
