How Does a 3 Way Ball Valve Work?

Introduction

A 3 way ball valve is a crucial component in fluid handling systems across many industries. It lets liquids or gases flow in different directions, blend, or switch between pipes. Unlike regular two-way valves, a three-way ball valve is more flexible and efficient because it combines several flow options in one valve.

Knowing how a 3 way ball valve works helps engineers, designers, and buyers control systems better and save money on setup. This guide explains the valve’s parts, how it works, different flow types, uses, and maintenance to help you choose the right valve.

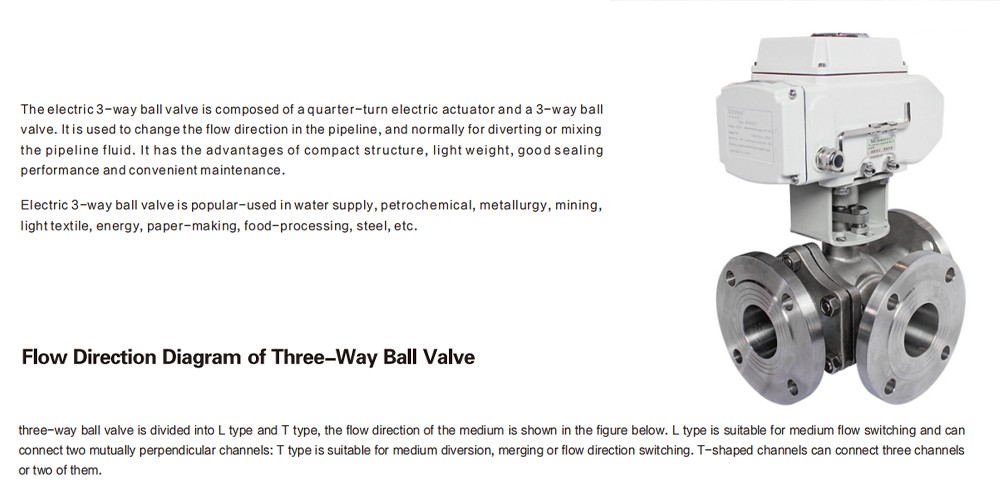

1. What is a 3 Way Ball Valve?

A 3 way ball valve has three holes, called ports A, B, and C. Inside, there is a ball that turns to control where the flow goes. The ball has a bore (a hollow channel) that aligns with different ports as the valve handle turns, enabling varied flow paths.

Compared to two-way valves, 3 way ball valves offer:

• • Flow diversion: Direct fluid from one inlet to two possible outlets.

• • Flow mixing: Combine two inlets into one outlet.

• • Flow switching: Alternate flow between different circuits without multiple valves.

This multifunctionality reduces the number of valves required, saving space, simplifying piping layouts, and lowering costs.

2. Internal Structure and Key Components

Understanding the valve’s internal structure is key to grasping its operation:

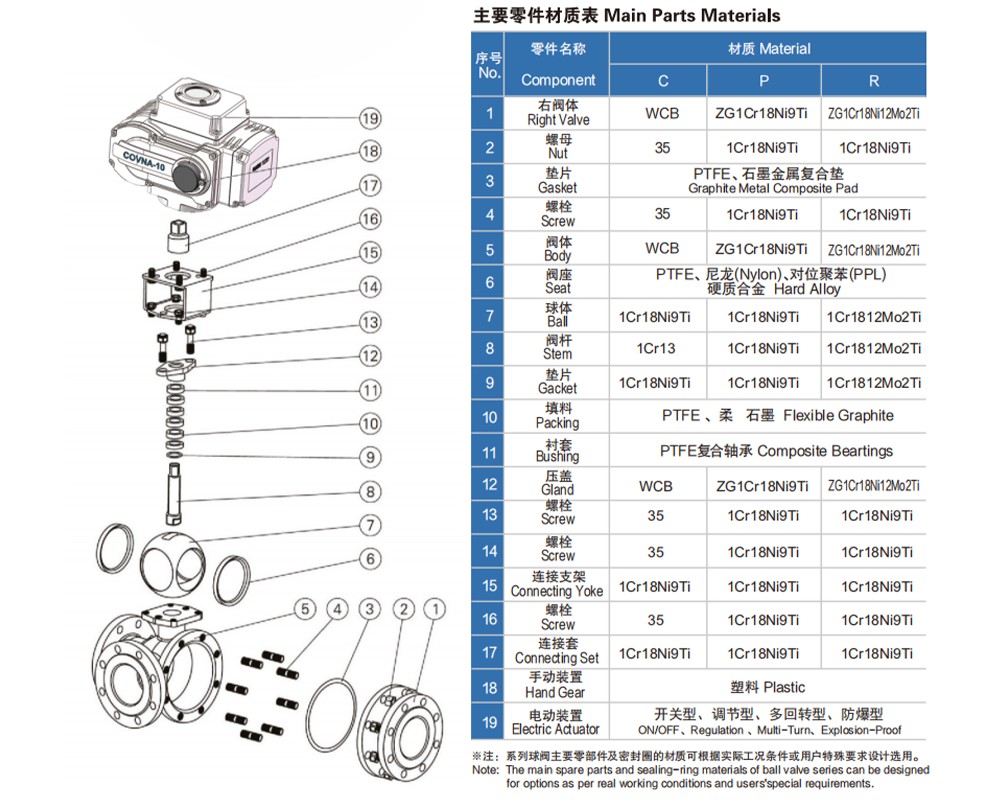

• • Valve Body: The outer casing houses all components and withstands pressure and corrosive media. Common materials include stainless steel (for corrosion resistance), brass (for cost efficiency), and carbon steel (for high strength).

• • Ball: The central spherical component with an internal bore. Precision engineering ensures the ball rotates smoothly within the valve body while maintaining tight seals to prevent leakage.

• • Stem: Connects the ball to the actuator or handle. It transfers torque to rotate and resists wear and corrosion.

• • Seats and Seals: Usually made from PTFE (Teflon) or other elastomers, seats provide a tight seal between the ball and valve body. Seals around the stem prevent external leaks.

• • Handle or Actuator: Allows manual or automatic control of the ball rotation. Actuators may be pneumatic, electric, or hydraulic depending on application needs.

3. Flow Path Configurations: L-Port vs. T-Port

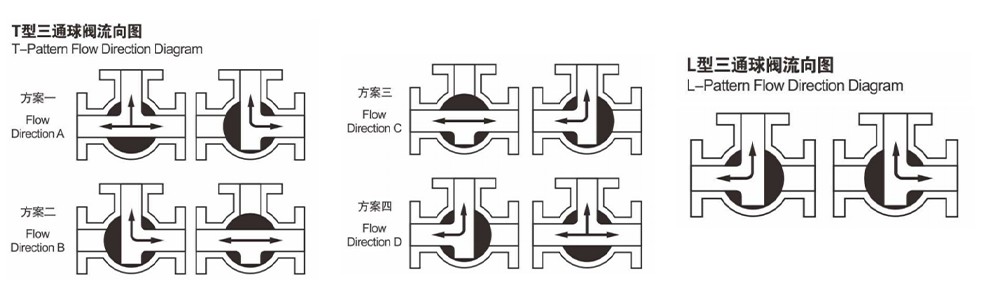

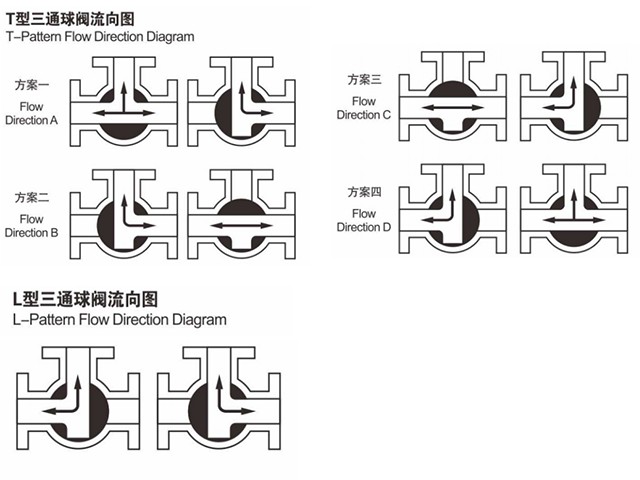

A 3 way ball valve works in different ways because of the shape of the hole in the ball, which controls how the fluid flows through the valve.

3.1 L-Port Ball Valve

• • The ball has an “L” shaped bore allowing flow between two ports simultaneously.

• • Operates as a diverting valve, routing flow from one inlet to either one of two outlets.

• • At any handle position, the flow goes from port A to either port B or port C, but not to both at the same time.

Example Use Case:

In an HVAC system, an L-port 3 way valve can send chilled water from the main pipe to either a cooling coil or a bypass pipe.

3.2 T-Port Ball Valve

• • The ball’s bore is shaped like a “T,” connecting up to three ports simultaneously.

• • It can mix fluids from two ports into one, or send flow from one port to either of the other two.

Example Use Case:

In chemical processing, a T-port valve can mix two reactant streams before directing the combined flow to a reactor.

4. How Does a 3 Way Ball Valve Work?

The valve works by turning the ball inside, which opens or closes different flow paths.

• • The rotation of the handle causes the ball to turn either 90° or 180°, controlling the flow direction.

• • The alignment of the bore with ports determines which ports are open to flow.

• • The valve can switch between multiple flow configurations by rotating the ball.

• • The valve seats form a tight seal that prevents leaks when the ports are closed.

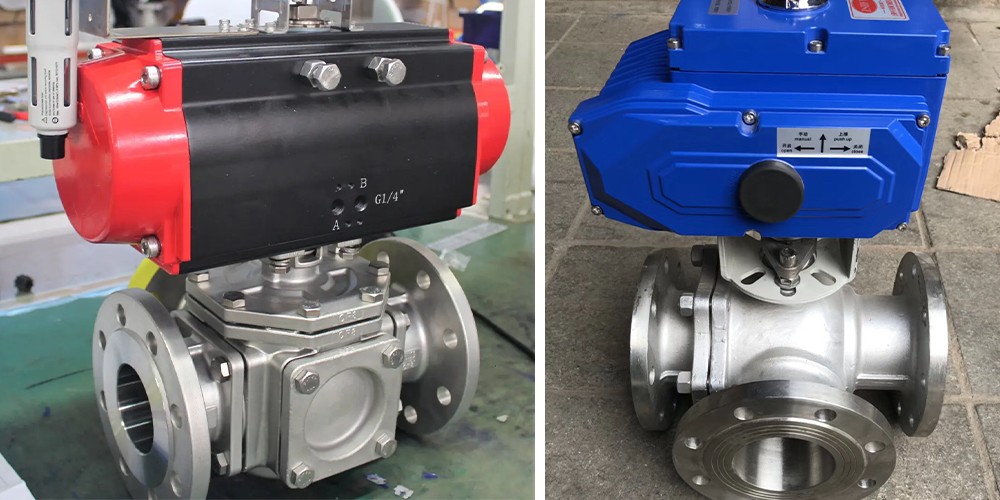

4.1 Manual Operation

A handle on the valve lets the user turn the ball by hand, making it easy to change the flow direction with a quick turn.

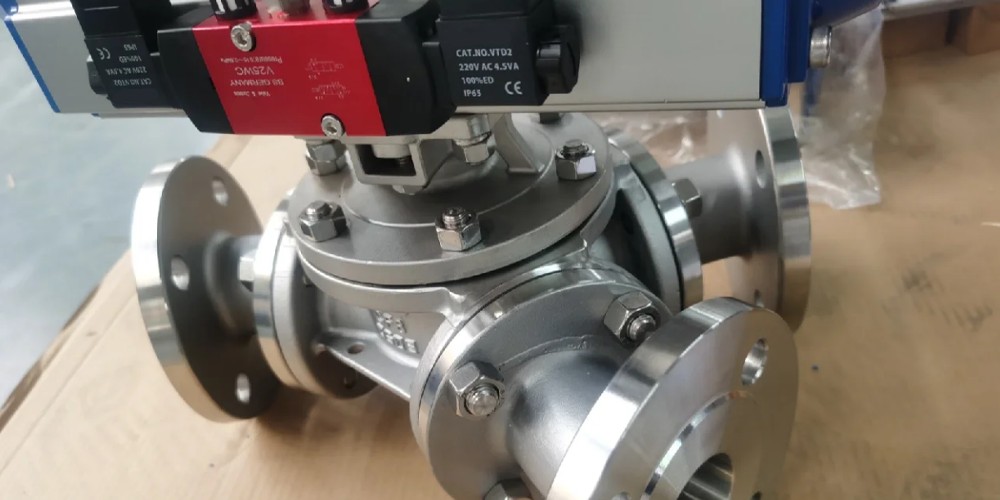

4.2 Automated Operation

For complex or hard-to-reach systems, air-powered or electric devices can turn the valve automatically. Systems like PLC or SCADA control them as part of automated industrial processes.

5. Detailed Flow Patterns and Examples

Let's explore typical flow scenarios:

6. Materials and Construction Considerations

The performance and longevity of a 3 way ball valve depend significantly on materials:

• • Stainless Steel (304, 316): Ideal for corrosive or sanitary applications such as food, beverage, pharmaceutical, and chemical industries.

• • Brass: Common for water and low-pressure applications, cost-effective but less resistant to harsh chemicals.

• • Carbon Steel: Suited for high-pressure and high-temperature environments.

• • Seals: People often use PTFE because it resists chemicals well. They can also choose materials like Viton or EPDM if those match the fluid better.

7. Common Applications

3 way ball valves are used in numerous sectors:

• • Chemical Industry: Precise mixing and diverting corrosive fluids.

• • Pharmaceuticals: Sanitary flow control with high cleanliness standards.

• • HVAC: Directing heating or cooling fluids to different parts of the system.

• • Water Treatment: Switching flow between filters or treatment stages.

• • Food and Beverage: Flow control with hygienic design and materials.

• • Oil & Gas: Flow switching in pipelines and process plants.

• • Manufacturing: Automated process control in assembly lines.

8. Advantages of Using a 3 Way Ball Valve

• • Compact Design: Combines multiple flow functions in one valve, saving space.

• • Simplified Piping: Reduces the need for additional valves and connectors.

• • Quick Operation: Quarter-turn actuation for rapid switching.

• • Versatility: Suitable for mixing, diverting, and flow switching.

• • Durability: Metal balls and robust seats ensure longevity.

• • Low Leakage: Tight seals minimize product loss and environmental hazards.

9. Choosing the Right 3 Way Ball Valve for Your Needs

When selecting a 3 way ball valve, consider:

• • Flow requirements: Will you need mixing, diverting, or both?

• • Pressure and temperature: Ensure valve rating matches system conditions.

• • Material compatibility: Valve body and seals must resist your fluid.

• • Size and connection type: Match pipe size and select threaded, flanged, or welded ends.

• • Operation mode: Manual or automated depending on control requirements.

• • Industry standards: Compliance with ISO, ANSI, API, or sanitary certifications if needed.

Our valve experts are ready to assist you in specifying valves tailored to your unique applications.

10. Maintenance and Troubleshooting Tips

To maintain optimal valve performance:

• • Operate valves regularly to prevent seat sticking.

• • Inspect seals and seats periodically; replace if wear or leaks occur.

• • Lubricate stem and seals as recommended.

• • Avoid over-torquing actuators to prevent ball or stem damage.

• • Flush pipelines to avoid sediment buildup that may impair valve operation.

Common issues include minor leakage, difficulty turning handle, or valve sticking, often resolved by cleaning or seal replacement.
