Compared to other valve types, needle valves can withstand higher pressures and offer superior sealing performance. This makes them particularly suitable for sealing low-flow, high-pressure gas or liquid media. Needle valves are optimally paired with pressure gauges, and typically feature threaded connections.
Parameters
Key Features
• 100% Stainless Steel Construction:
Crafted from AISI 304 or AISI 316 stainless steel, ensuring high corrosion resistance and durability in aggressive environments.
• Precise Flow Adjustment:
The finely machined needle provides stable, accurate throttling of fluid flow across a wide pressure range.
• Leak-Tight Shutoff:
Metal-to-metal or soft-seat sealing options ensure zero leakage when fully closed.
• High Pressure Rating:
Suitable for pressures up to 6000 psi (414 bar), depending on size and model.
• Compact & Rugged Design:
Optimized for tight installations without compromising performance.
• Universal Applications:
Compatible with a wide range of media: air, gas, oil, water, steam, or corrosive chemicals.

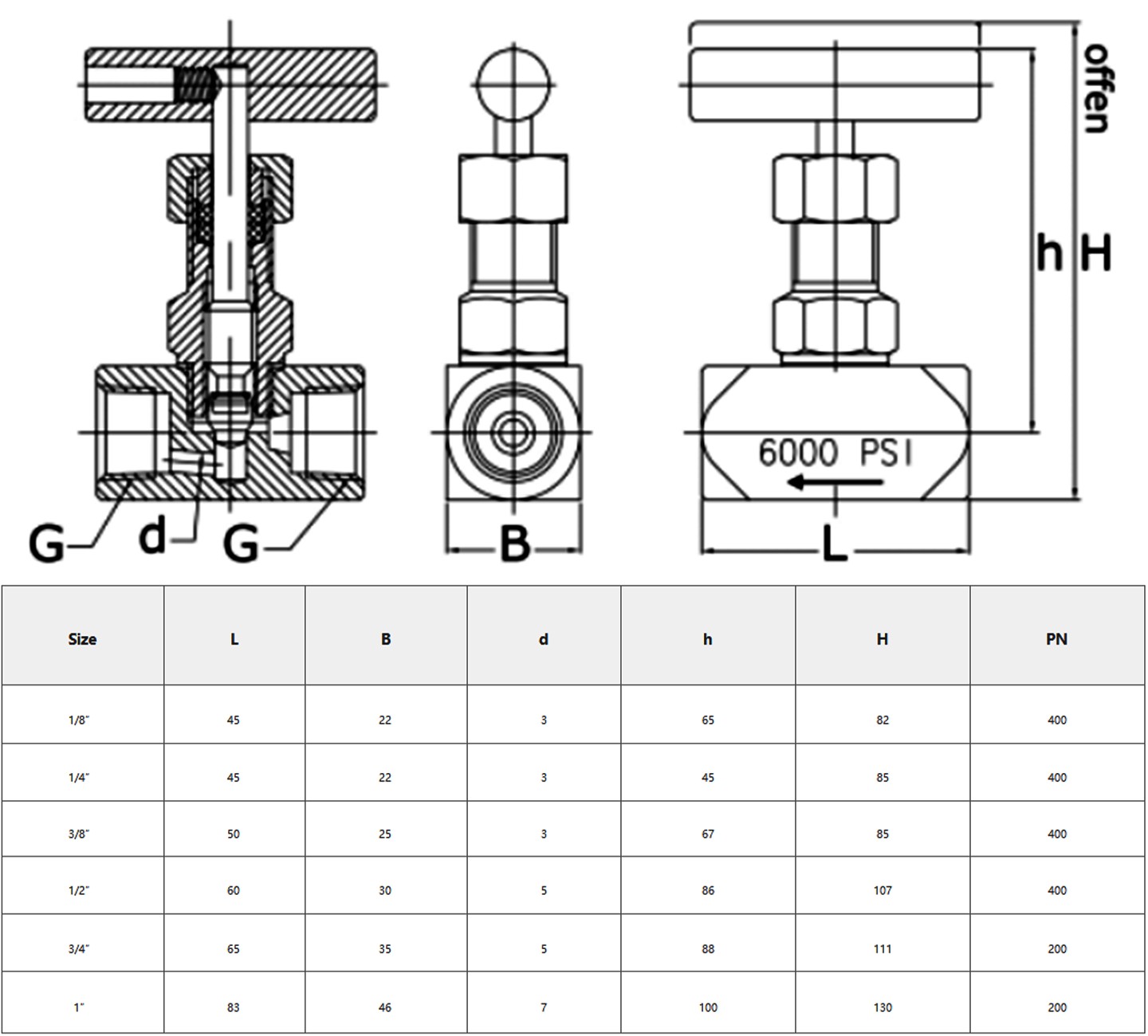

Specification | Details |
---|---|
Nominal Diameter | DN06-DN25 |
Sealing Material | Polytetrafluoroethylene (PTFE) |
Valve Body Material | Stainless Steel 304, Stainless Steel 316, Stainless Steel 316L |
Handle Material | Stainless Steel 304, Stainless Steel 316, Stainless Steel 316L |
Connection Type | Threaded Connection (NPT, G, Rc, Rp...) |
Media Temperature | PTFE: -20~180°C |
Pressure Rating | PN200-PN400 |
Application Media | Water, Oil, Gas, and other corrosive/non-corrosive media |
Design Standards | GB/T12224-2023, GB/T7747-1995 |
Testing and Inspection | GB/T13927-2023 |
COVNA Factory
COVNA Factory Real Shot -3
• Chemical and petrochemical fluid control
• Instrumentation panels and analytical systems
• Hydraulic and pneumatic circuits
• Process lines in water treatment or power generation
• Offshore and marine systems
• Pharmaceutical and biotech manufacturing
Whether you are working with high-purity gases in a lab or aggressive chemicals in a refinery, this valve performs with consistent accuracy and long-term reliability.
We offer custom configurations to meet your specific requirements:
• Extended or panel mount stem
• Lockable handle
• Reverse flow check valve integration
• Exotic alloy versions (Hastelloy, Monel, Duplex SS)
• Special cleaning for oxygen service
Certification
AGA
ISO14001
IAF
SGS
CE
FDA
RoHS
SGS
Q1: Can I use this needle valve with steam or high-temperature fluids?
Yes. The stainless steel body and metal seat allow operation up to 250°C. For steam, a metal seat is recommended.
Q2: Is this valve suitable for throttling or just shutoff?
This valve is designed for precise throttling, making it ideal for applications where flow must be finely adjusted, not just open or closed.
Q3: What’s the difference between a needle valve and a ball valve?
A needle valve allows gradual, precise control of flow, while a ball valve is better for quick, full-open/full-close applications.
Q4: Do you offer OEM branding?
Yes, we support OEM and can engrave your brand name or part number on the valve body or handle.
As a valve manufacturer with over 20 years of experience, we pride ourselves on engineering valves that meet the highest international standards. Every needle valve is tested before shipment for performance, leakage, and material integrity.
• In-house CNC precision machining
• ✅ 100% leak testing before delivery
• CE, ISO, and RoHS compliant
• Fast delivery with global logistics support
• Application-based consultation from our engineers
