Filter Regulator Valve Working Principle and Selection Guide for Valve Buyers

As a leading valve manufacturer, we understand that valve accessories like filter regulator valves play a crucial role in ensuring the stable and reliable operation of pneumatic valves. Improper selection or failure of these components can cause valve malfunction, impacting your process safety and operational efficiency.

This comprehensive guide will help you understand the working principle of filter regulator valves, key selection considerations, and why investing in high-quality valves from a trusted manufacturer like us will benefit your system’s performance.

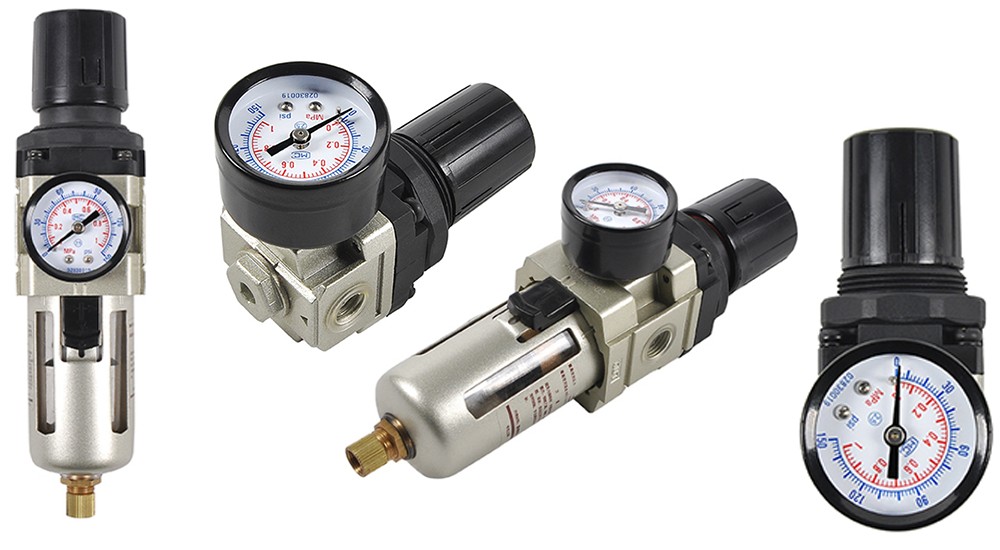

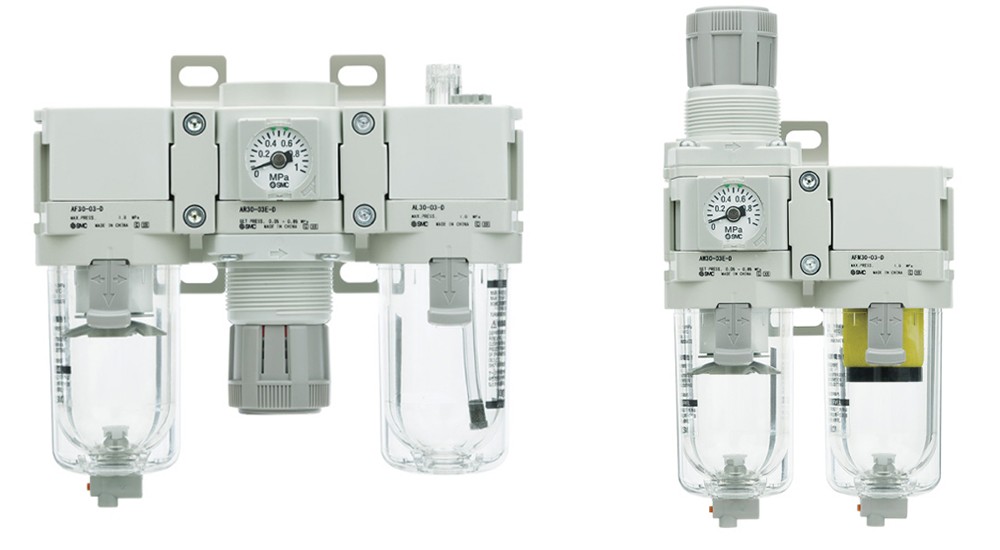

What Is a Filter Regulator Valve and Why Is It Essential?

Filter regulator valves combine two vital functions:

• Filtering: Removes water, oil, rust, dust, and other contaminants from compressed air.

• Pressure Regulation (Reduction): Converts high inlet pressure to a stable, lower outlet pressure suitable for downstream pneumatic valves.

Compressed air from compressors often contains impurities that can severely damage pneumatic components:

• Oil contamination can degrade rubber and plastic parts, causing premature aging.

• Water vapor leads to corrosion, freezing, and lubrication loss.

• Dust and rust particles accelerate wear and lead to air leakage.

By integrating a filter and a pressure reducer, filter regulator valves ensure clean, stable air supply that protects valves and prolongs their lifespan.

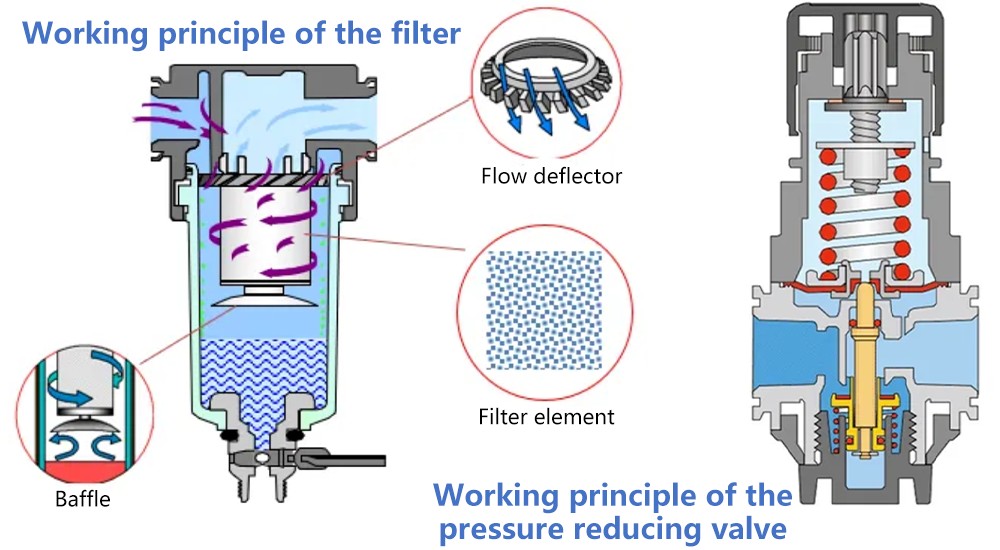

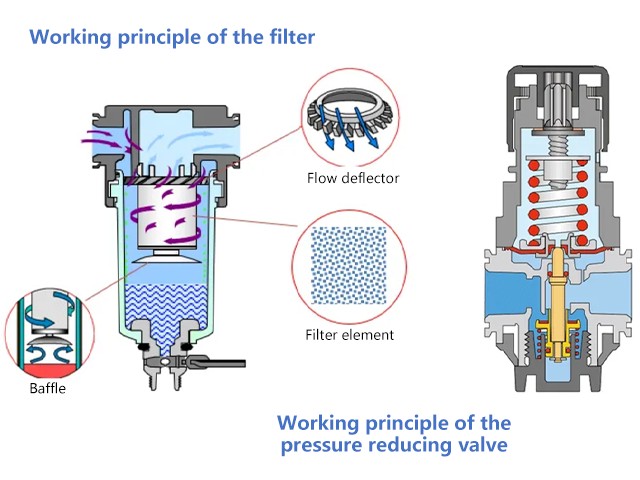

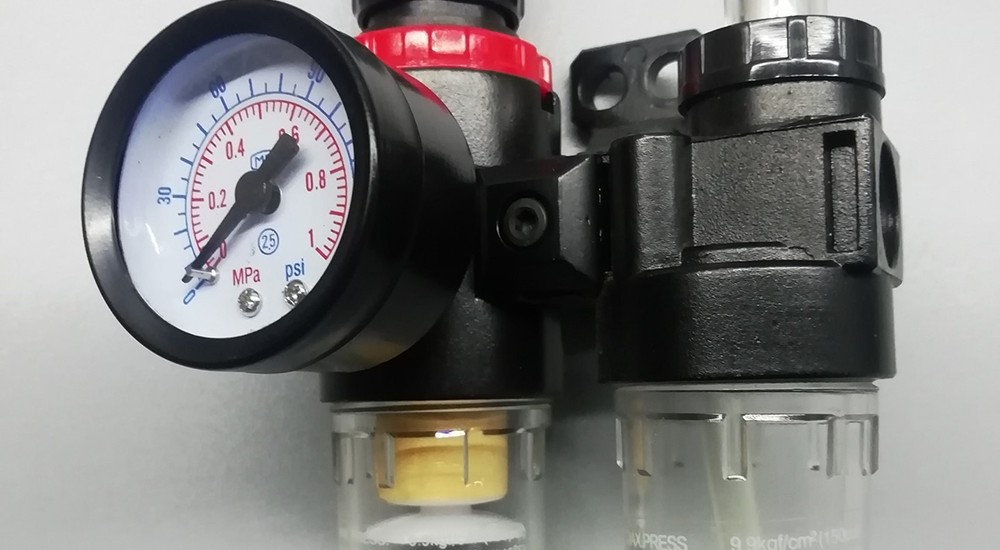

Working Principle of Filter Regulator Valves

1. Filter Section

Compressed air enters the filter chamber, where a centrifugal action (via a swirl plate) forces heavy particles and liquid droplets to the outer walls, collecting them in the water bowl. The air then passes through a fine filter element (typically a sintered metal filter) that traps micro-particles down to 5 microns.

• The filter element is washable and reusable, extending service life.

• Accumulated condensate can be manually or automatically drained.

• Regular maintenance and filter replacement (usually every 2 years or when pressure drop exceeds 0.1MPa) are essential.

2. Pressure Regulator Section

• Adjusting the handwheel compresses a spring, which controls a diaphragm connected to the valve spool.

• When the spring compresses, it opens the valve, allowing high-pressure air to reduce to the set lower pressure.

• A feedback channel senses outlet pressure and balances the diaphragm, maintaining stable outlet pressure despite inlet fluctuations.

Key Considerations When Selecting Filter Regulator Valves

Choosing the right filter regulator valve is critical to valve system reliability. Consider the following factors:

Environmental Conditions

• Sunlight Exposure: Use all-metal valves in direct sunlight to avoid UV damage and heat-related failures. Provide shade if possible.

• Humidity and Dust: Select models with IP-rated waterproof and dustproof designs.

• Heat Sources: Avoid installing near strong heat or ensure shielding to prevent material degradation.

• Coastal Areas: Choose corrosion-resistant materials like stainless steel or valves with salt-spray protection.

• Chemical Exposure: For environments with organic solvents or chemicals, opt for metal bowl versions and validate material compatibility through testing.

• Low Temperature: Prevent freezing damage with proper insulation or heaters; metal bowls help resist cold-induced cracking.

• Leakage Control: In sensitive environments, choose valves with exhaust air collection capabilities.

Technical Parameters

• Fluid Type: Confirm compatibility if using gases other than compressed air.

• Operating Temperature: Select according to ambient and media temperature ranges (e.g., -5°C to 60°C standard, or special low/high-temperature versions).

• Operating Pressure: Most filter regulators support up to 1.5 MPa, with recommended operation at ≤1.0 MPa.

• Set Pressure Range: Typically 0.05 to 0.85 MPa, adjustable per downstream equipment needs.

• Filtration Precision: Standard 5μm filtration for instrumentation air.

• Flow Capacity & Port Size: Match valve size and flow rate to pneumatic actuator demands.

• Drain Type: Choose manual drains for standalone setups and automatic drains for centralized control panels; avoid automatic drains in freezing conditions.

Installation Tips

• Always install with inlet and outlet ports oriented correctly (observe “IN” and “OUT” markings).

• Mount water bowls vertically downward for proper drainage.

• Allow sufficient space around the valve for inspection, maintenance, and operation.

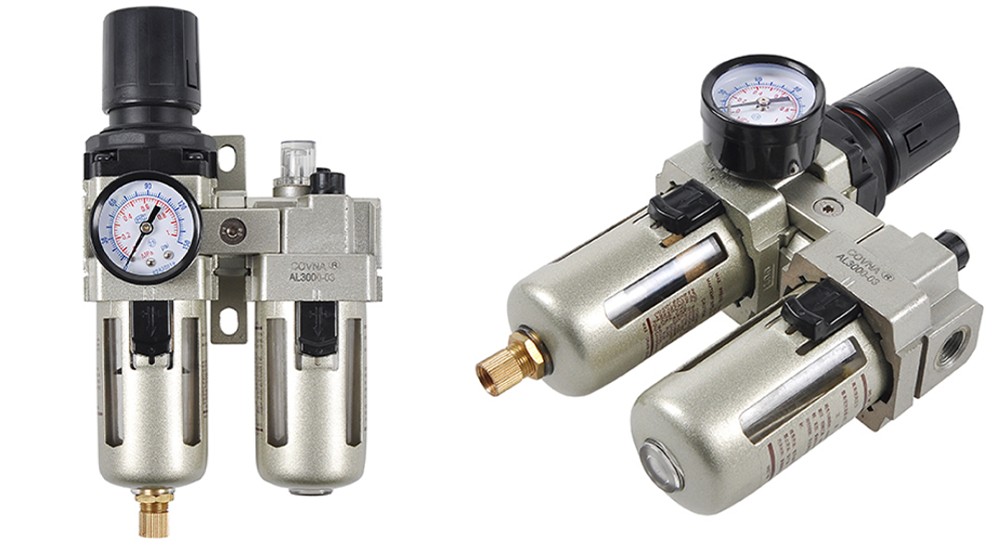

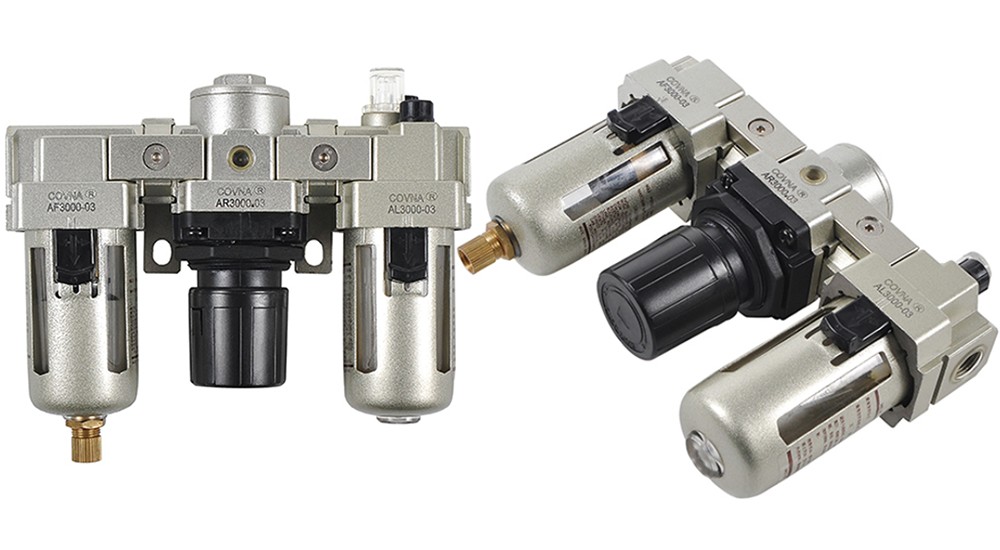

Why Choose Our Valves?

At [Your Company Name], we specialize in high-quality pneumatic valves and accessories, engineered for durability and optimal performance. Our filter regulator valves are:

• Manufactured with premium materials resistant to corrosion, UV, and harsh chemicals.

• Equipped with advanced sintered metal filters ensuring long service life and easy maintenance.

• Designed for precise, stable pressure control to protect your valve actuators and ensure consistent operation.

• Tested rigorously for reliability in diverse industrial environments.

• Backed by expert technical support and customizable options for your unique applications.

Conclusion

Selecting the right filter regulator valve is essential to maintain clean, stable compressed air supply and safeguard your pneumatic valve systems. By considering environmental factors, technical specifications, and installation best practices outlined here, you can significantly enhance your system’s safety and longevity.

Partner with COVNA for valves and accessories that deliver performance, reliability, and peace of mind. Contact us today to learn how our solutions can optimize your pneumatic valve applications.
