What is an Actuator Valve?
Actuator valves help turn the flow of liquids or gases on or off without needing someone to do it by hand. Factories, power stations, and water plants use it to control flow automatically. If you're looking for a clear and informative explanation, this article will provide the insights you need.
This guide explains:
• What actuator valves are
• How they work
• The main types of valve actuators
• Real-world applications
• Selection criteria
• Advantages of automation
• And why buying from a trusted manufacturer makes all the difference
Let’s dive in.
What is an Actuator Valve?
An actuator valve is a valve that can turn on, off, or adjust flow by itself, using a special device called an actuator.
In other words:
An actuator valve = Valve (flow control device) + Actuator (automated motion device)
Together, they form what’s commonly known as an actuated valve.
Manual valves need a person to open or close them. It open and close by themselves using signals like electric power or air.
⚙️ How Does an Actuator Valve Work?
An actuator valve functions by converting an input signal (electrical, pneumatic, or hydraulic energy) into mechanical motion, such as:
• Rotary motion (e.g., turning a ball valve 90°)
• Linear motion (e.g., pushing a globe valve stem up/down)
This movement opens, closes, or adjusts the valve to control how much liquid or gas flows through a pipe.
Signal to Motion Flow:
Control System → Signal (voltage, air, fluid) → Actuator → Mechanical Movement → Valve Operation
Modern actuated valves often include positioners, limit switches, or feedback sensors for accurate flow regulation and diagnostics.
Types of Actuator Valves (and Which One to Choose)
Valve actuators fall into three main categories, depending on their power source:

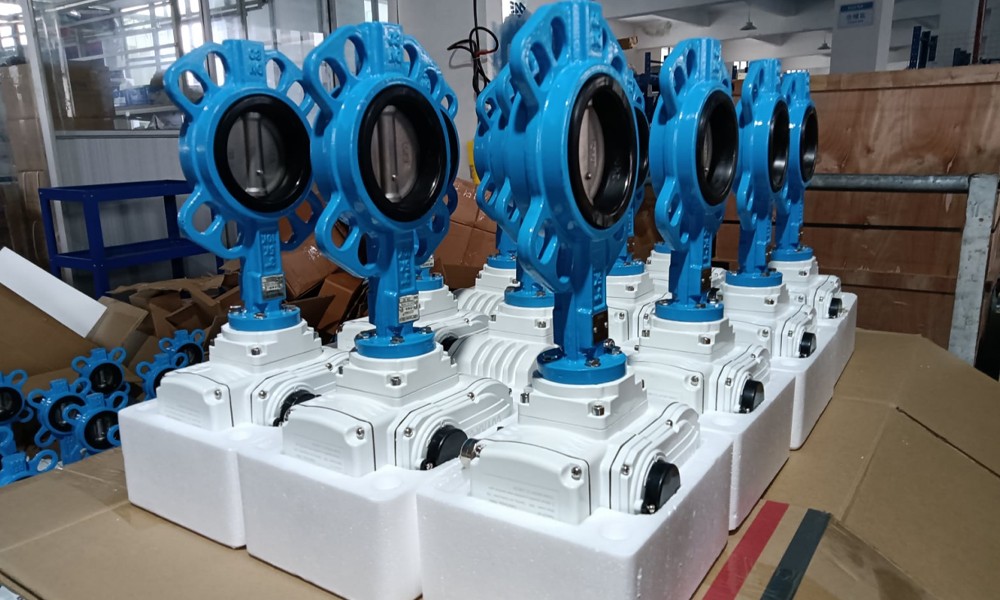

1. Electric Actuator Valves
Power source: Electricity
Motion: Rotary or linear (via motor and gears)
Applications: Building automation, water systems, HVAC, pharmaceutical
Pros:
• Precise control
• Easy integration with control systems (PLC, DCS, SCADA)
• Clean operation—no fluid leaks or compressed air needed
Cons:
• Slower response than pneumatics
• May require backup during power failures
✅ Use electric actuator valves where precision and clean environments are essential.

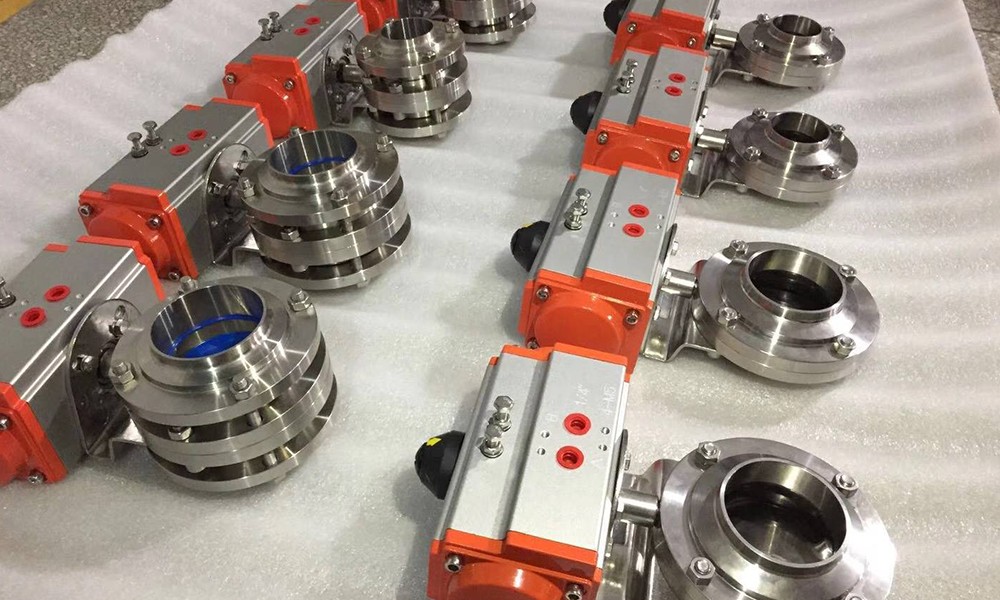

2. Pneumatic Actuator Valves
Power source: Compressed air
Motion: Usually rotary, but also available as linear
Applications: Oil & gas, chemical plants, hazardous areas
Pros:
• Fast response
• Safe in flammable or explosive environments
• Simple structure and maintenance
Cons:
• Needs a stable air compressor system
• Air leaks can reduce efficiency
✅ Choose pneumatic actuator valves for high-speed switching or ATEX-rated (explosive) zones.
3. Hydraulic Actuator Valves
Power source: Pressurized hydraulic fluid
Motion: High-force linear or rotary
Applications: Offshore platforms, mining, power stations
Pros:
• Delivers high torque/force
• Ideal for large or heavy-duty valves
Cons:
• Complex installation
• Risk of fluid leakage
• More expensive
✅ Pick hydraulic actuator valves when strength and durability outweigh simplicity.
Compatible Valve Types
You can mount an actuator on different valve bodies based on the flow needs of the application.
Valve Type
Features
Suitable Applications
Ball Valve
1/4-turn, tight shutoff
On/off control, oil & gas
Butterfly Valve
Lightweight, low-pressure drop
HVAC, water systems
Globe Valve
Precise throttling
Steam, high-pressure systems
Gate Valve
Low resistance, full bore
General pipeline shutoff
Plug Valve
Quick-acting, minimal leak paths
Slurry, viscous fluids
Actuators are typically paired with ball and butterfly valves for rapid 90° movement and globe valves for modulating control.
Where Are Actuator Valves Used?
Actuated valves are used virtually everywhere:
•️ Oil & Gas: Pipeline control, tank safety shutoffs

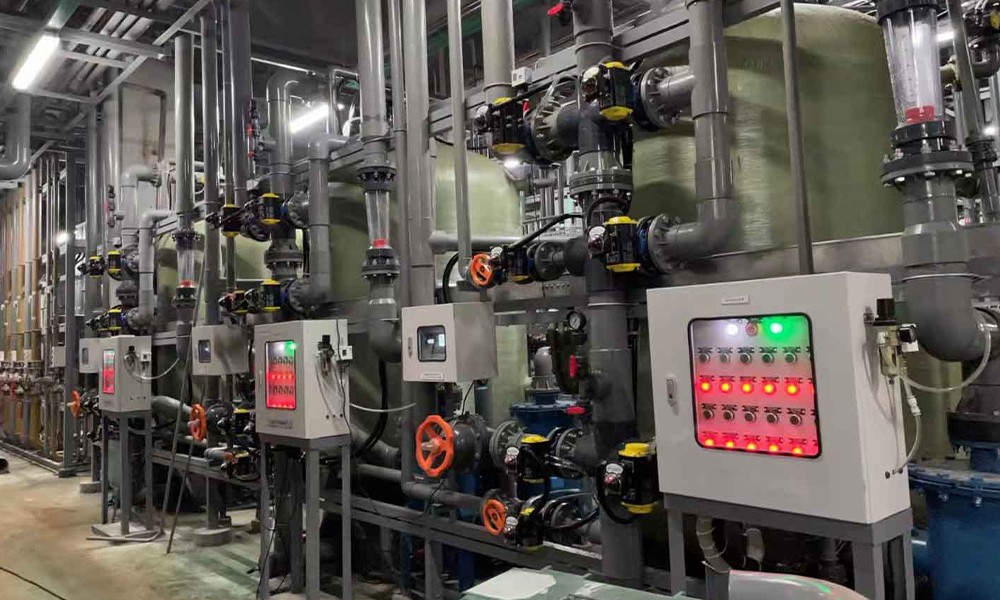

•️ Water Treatment: Flow control in filtration or distribution
•️ ❄️ HVAC: Chilled water control, zone regulation

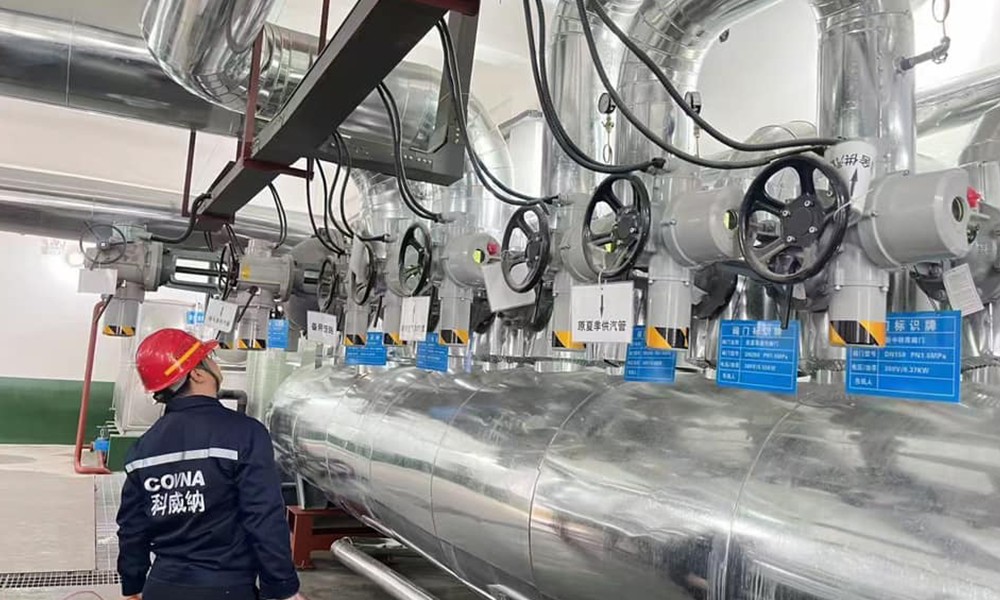

•️ ⚡ Power Plants: Steam valve modulation, boiler control
Here’s why industries invest in actuated valves over manual ones:
✅ 1. Precision Control
Actuators can finely adjust flow rates based on real-time feedback, improving efficiency and product quality.
✅ 2. Automation & Remote Operation
Actuated valves integrate seamlessly into digital control systems, reducing the need for manual labor.
✅ 3. Enhanced Safety
Actuators operate in hazardous or inaccessible areas—no human intervention required.
✅ 4. Repeatability & Consistency
Every cycle is identical, reducing human error and wear.
✅ 5. Cost Efficiency
Less downtime, less energy waste, and fewer mistakes mean long-term savings.
How to Select the Right Actuator Valve
When choosing an actuator valve for your project, consider these factors:
1. Torque or Thrust Requirements
How much force is needed to open/close the valve under system pressure?
2. Power Source Availability
Which power source—electricity, air, or hydraulic—is most readily available in your facility?
3. Fail-Safe Mechanism
Do you need a spring-return actuator that closes when power goes out, or a stay-put actuator that stays in place?
4. Environment
Is the environment corrosive, humid, hot, or classified as hazardous? IP or ATEX protection may be necessary.
5. Control Type
On/Off: Fully open or fully closed
Modulating: Variable valve position for flow regulation
6. Mounting Standards
Ensure the actuator and valve body use standardized connections (e.g., ISO 5211)
Why Buy From a Valve Manufacturer?
When you buy actuator valves from a trusted valve maker like us, you get more than just a product—you get a full solution.
✔️ Custom valve-actuator packages designed for your process

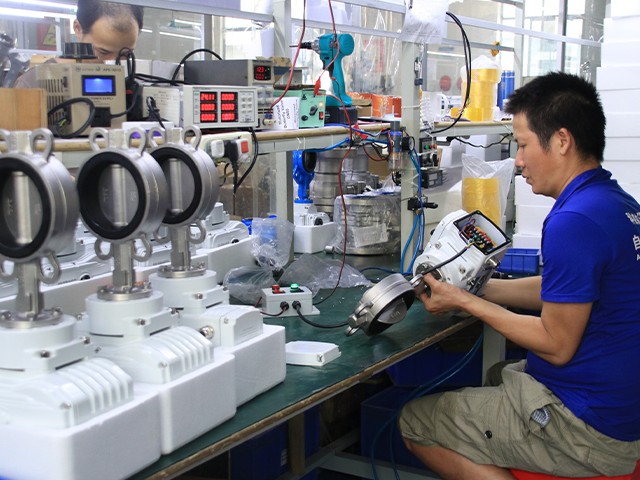

✔️ Factory testing for torque, leak resistance, and cycle life
✔️ Global certifications (CE, ISO, ATEX, UL)
✔️ Ongoing technical support and spare parts availability
✔️ Fast delivery and local service options
We design and build electric, pneumatic, and hydraulic actuator valves with precision, durability, and long-term performance in mind.
If you need a valve that works automatically for air conditioning, water treatment, or power plants, we have the right one for you.
