What Is the Function of a Time Delay Valve?

A Complete Guide for Engineers, Maintenance Professionals, and Automation Experts

In pneumatic systems, timing and synchronization are critical. Whether you're controlling the sequence of actuators, ensuring safety delays, or automating operations with precision, a time delay valve plays an essential role. But what exactly does it do? In this article, we explore in depth:

• • The function of a time delay valve

• • How it works (with internal structure)

• • Where it is commonly used

• • Types of delay (on-delay and off-delay)

• • Why choosing the right valve matters in industrial automation

1. What Is a Time Delay Valve?

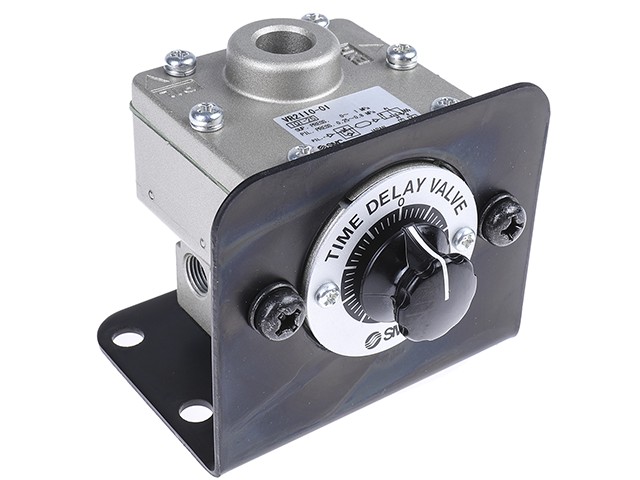

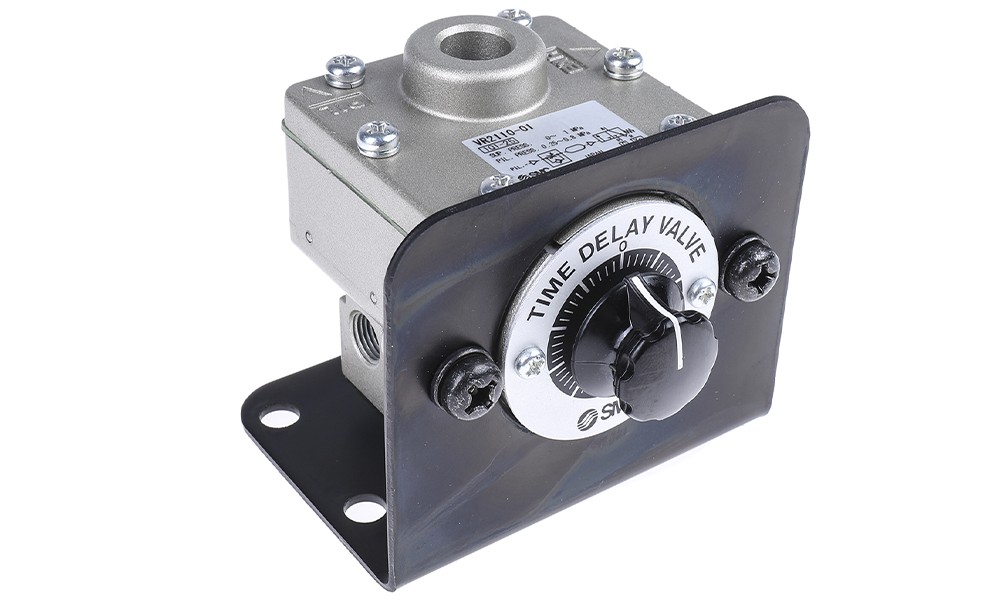

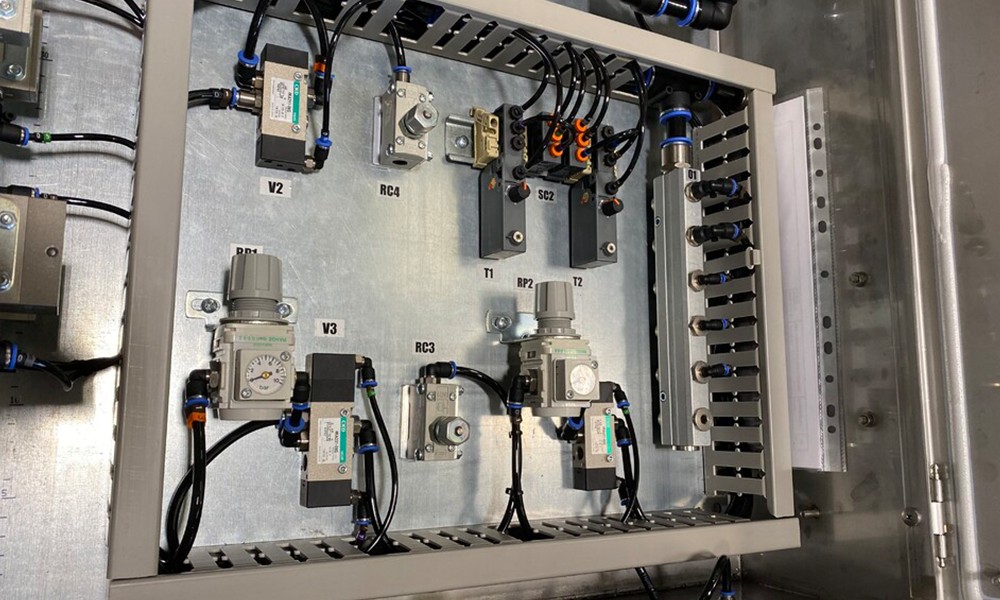

A time delay valve is a pneumatic control element that introduces a controlled delay before an output signal is transmitted. Instead of acting immediately when it receives input pressure, it holds back the signal for a pre-set period—ranging from milliseconds to several seconds—depending on the design and settings.

This delay enables precise timing in automation systems without requiring any electronic components, making time delay valves highly valuable in explosion-proof and power-independent environments.

2. How Does a Time Delay Valve Work?

Basic Internal Structure:

• • Throttle (Flow Restrictor): Controls how fast air can flow into the chamber.

• • Reservoir/Chamber: Stores the air temporarily until pressure builds up.

• • 3/2-Way Valve: Shifts only when the chamber pressure exceeds a certain threshold.

• • Adjustment Screw: Used to fine-tune the delay time (typically 0.5–30 seconds).

Operating Modes:

• • On-Delay (Normally Closed): Delay before activation.

• • Off-Delay (Normally Open): Delay before deactivation.

By adjusting the flow restrictor, you control how long it takes to fill the reservoir—and therefore, how long the system waits before responding.

3. What Is the Function of a Time Delay Valve?

Here’s the core answer to your search:

➤ The primary function of a time delay valve is to delay the transmission or removal of pneumatic signals for a specified period, enabling precise sequence control in automation systems.

This function brings multiple benefits to pneumatic applications:

✅ Sequential Operation:

In processes involving multiple actuators (e.g., pressing, clamping, releasing), time delay valves ensure they operate in the correct order—without overlapping or damaging equipment.

✅ Safety Timing:

When you need to delay retraction or activation for safety (e.g., letting a saw blade stop before opening a cover), time delay valves offer a simple and cost-effective solution.

✅ Power-Free Logic Control:

Since they operate on compressed air alone, they’re ideal for ATEX zones, remote areas, or environments where electronic control is impractical.

✅ Reduced Component Cost:

Replacing complex PLC timing functions with air logic is often more robust, maintenance-free, and lower-cost in simple automation setups.

4. Common Applications of Time Delay Valves

These valves are commonly used in:

• • Punching/Stamping Machines: Delay the return stroke after pressing.

• • Packaging Lines: Delay belt movement to ensure products are aligned.

• • Pneumatic Doors: Allow time for door closing before a lock engages.

• • Clamping Devices: Delay unclamping to ensure parts are processed.

• • Conveyor Systems: Introduce waiting times between operations.

5. Types of Time Delay Valves

There are two main functional variants:

TypeFunctionApplication ExampleOn-Delay (Normally Closed)Activates after a delay once air signal is receivedDelay cylinder extensionOff-Delay (Normally Open)Signal remains on briefly after air is removedDelay cylinder retraction

You can choose based on whether you need a delay at the start of the signal or at the end.

6. Why Quality and Precision Matter

Not all time delay valves are created equal. Poor-quality valves may:

• • Drift over time, reducing accuracy

• • Leak air and increase energy costs

• • Fail under high pressure or dirt

For industrial performance, look for valves that offer:

• • Adjustable timing (e.g., 0.5–30s)

• • Repeatability (±2%)

• • High-pressure resistance (up to 10 bar or more)

• • Robust build for harsh environments

7. Ready to Integrate Time Delay Valves into Your System?

As a professional valve manufacturer, we design and manufacture high-precision pneumatic valves—including time delay valves tailored to your automation needs.

Whether you're designing a new machine or retrofitting an old one, our engineering team can help you:

• • Select the right timing range

• • Choose between on-delay and off-delay

• • Integrate with 3/2, 5/2 or custom valve setups

• • Ensure long-term durability and easy maintenance

Contact us today for technical consultation or request a quote directly. Let us help you build smarter, safer, and more efficient pneumatic systems—one valve at a time.

Conclusion

A time delay valve may look simple, but its function is critical for controlling time-sensitive pneumatic processes. It introduces a deliberate pause—allowing mechanical systems to synchronize, stay safe, and operate in the correct sequence.

Whether you're new to pneumatic automation or upgrading existing setups, understanding the function of a time delay valve is key to designing reliable and efficient systems.
