Introduction: The Unsung Hero of Fluid Control

Check valves—also known as non-return valves (NRVs)—are crucial components in fluid systems. Even though check valves are small and easy to miss, they play an important role by stopping fluid from flowing the wrong way. This helps protect equipment, avoid damage, and keep everything running safely.

Whether you’re building pipes, fixing machines, or buying parts, knowing how check valves work makes sure things are safe and run smoothly.

1. What Is a Check Valve?

A check valve is a type of valve that automatically prevents fluid from flowing in the wrong direction. Check valves don’t need anyone to operate them—they open when fluid flows forward and shut tight if it tries to go backward.

This self-acting mechanism makes them essential in systems where backflow could cause contamination, damage, or loss of efficiency.

Key Functions:

• • Ensures unidirectional fluid flow

• • Prevents backflow

• • Protects pumps, compressors, and pipelines

• • Minimizes downtime and maintenance

2. How Does a Check Valve Work?

A check valve works simply: it lets liquid or gas flow in one direction and automatically closes if the flow tries to go backward.

Inside the valve, there’s a part like a disc, ball, or piston that moves to open when the flow goes forward and closes when it tries to flow back.

Opening Mechanism:

• • When fluid flows in with pressure, it pushes the inside part open.

• • As flow continues, the valve stays open.

• • If pressure drops or flow tries to reverse, the internal part snaps shut, sealing the outlet.

3. Main Types of Check Valves (With Pros & Cons)

Different applications require different valve types. Here are the most common types, each with unique strengths:

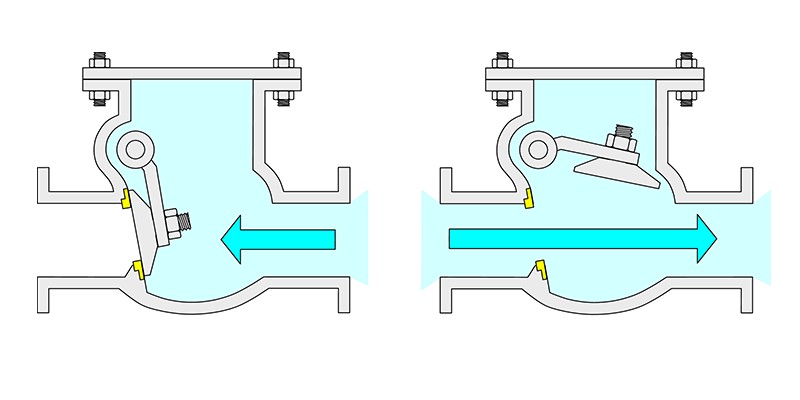

1. Swing Check Valve

•


• • Mechanism: Hinged disc swings open with flow.

• • Pros: Simple, cost-effective, good for clean water.

• • Cons: Not suitable for pulsating flow.

• • Applications: Water supply, HVAC, irrigation.

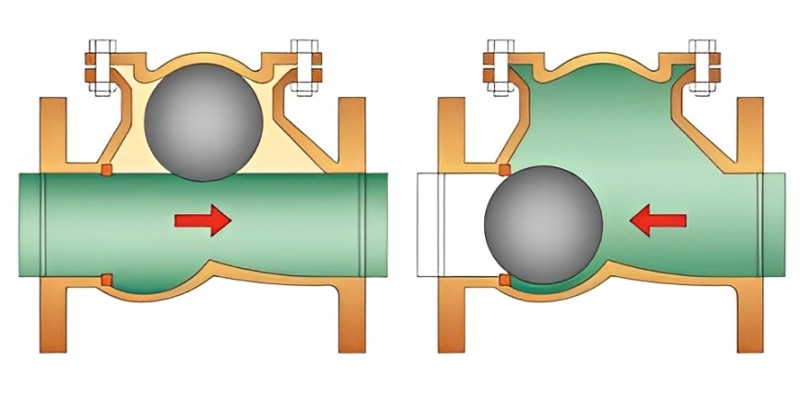

2. Ball Check Valve

•


• • Mechanism: Free-moving ball seals against a seat.

• • Pros: Ideal for slurry and viscous fluids.

• • Cons: May wear over time in abrasive media.

• • Applications: Mining, wastewater, chemical systems.

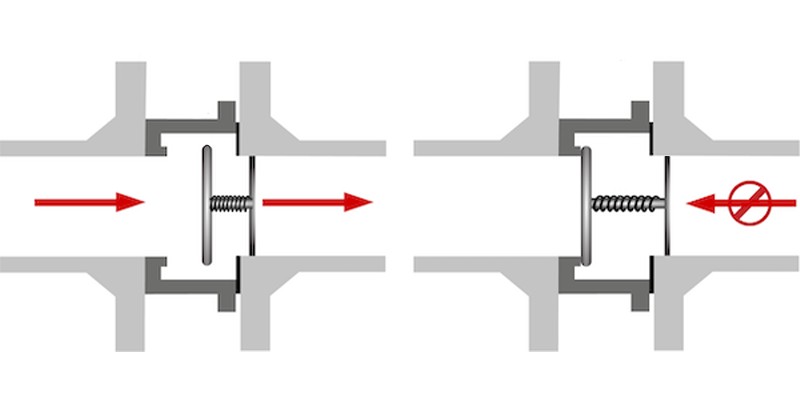

3. Spring-Loaded Inline Check Valve

•


• • Mechanism: The spring keeps the valve closed until the pressure from the flow is strong enough to open it.

• • Pros: Fast response, vertical or horizontal mounting.

• • Cons: Slight pressure loss because of spring resistance.

• • Applications: Compressed air, hydraulic systems, steam.

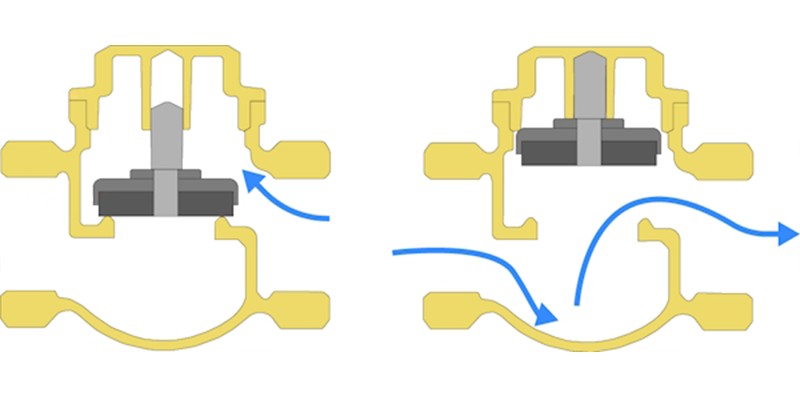

4. Lift Check Valve

•


• • Mechanism: Disc lifts vertically off seat under pressure.

• • Pros: Reliable for high-pressure flow.

• • Cons: You must install it horizontally.

• • Applications: Boiler systems, oil & gas.

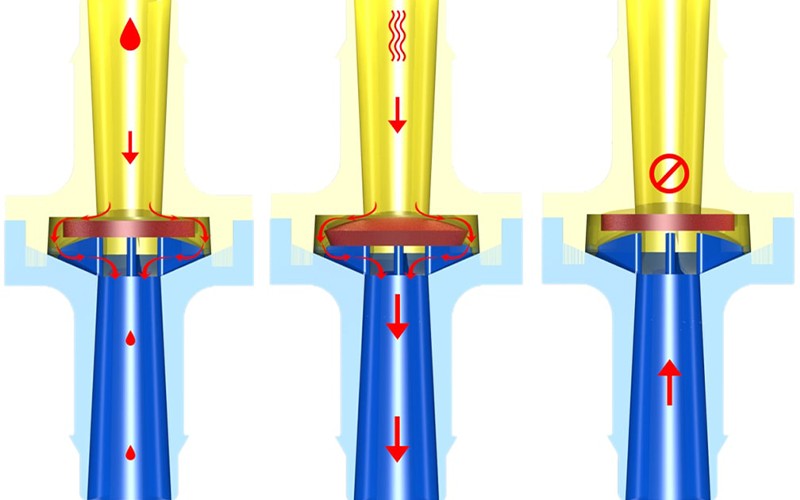

5. Diaphragm Check Valve

•


• • Mechanism: Flexible diaphragm seals outlet when pressure drops.

• • Pros: Quiet operation, resistant to chemical attack.

• • Cons: Limited to low-pressure systems.

• • Applications: Chemical dosing, medical equipment.

4. Materials of Construction

Picking the right material helps it last longer and work better.

Valve components like seats, seals, and springs also matter. Options include EPDM, PTFE, and NBR depending on temperature and chemical compatibility.

5. Check Valve Applications Across Industries

Check valves are incredibly versatile. They are found in:

• Water Systems

• Preventing contaminated water from re-entering the clean water supply.

• Industrial & Process Piping

• Protecting compressors and pumps from reverse flow.

• Oil & Gas

• High-pressure, high-temperature environments demand rugged valves.

• Fire Protection Systems

• Ensures water flows only to the sprinkler heads during emergencies.

• HVAC

• Maintains flow direction in chilled and hot water systems.

• Medical & Food Processing

• Requires ultra-clean, corrosion-resistant, and compact valves.

6. Common Problems and How to Avoid Them

• Water Hammer

• • When the valve closes suddenly, it can cause harmful pressure spikes.

• • Solution: Use soft-closing or spring-assisted valves.

• Reverse Leakage

• • Caused by debris, worn seals, or poor installation.

• • Solution: Select the right valve type, material, and size.

• Installation Errors

• • Installing a valve made for horizontal use in a vertical position makes it work worse.

• • Solution: Follow manufacturer guidelines carefully.

7. How to Select the Right Check Valve

Selecting the correct check valve involves considering these factors:

8. Why Choose Us as Your Check Valve Supplier?

We’ve been making check valves for years and help customers all around the world.Here's what sets our valves apart:

✅ Precision Engineering – CNC-machined for tight tolerances

✅ Quality Materials – 304/316L stainless steel, brass, PVC options

✅ Reliable Sealing – Tested under high pressure and varying flow rates

✅ Global Certification – CE, ISO, WRAS, RoHS compliance

✅ OEM/ODM Support – We support your branding and design requirements

✅ Fast Lead Times – Ready stock and global logistics

“Whether you need a single prototype or thousands for large-scale projects, we’re ready to deliver.”

9. FAQs About Check Valves

Q: Can check valves be used for gas?

A: Yes, but select a valve with minimal leakage and appropriate sealing (e.g., PTFE).

Q: Do check valves require maintenance?

A: In most cases, they are low-maintenance. We recommend checking the valve regularly in systems with a lot of debris.

Q: Can you install a check valve vertically?

A: Only if the valve type supports it (e.g., spring-assisted inline types).

Q: What's the cracking pressure?

A: It's the minimum pressure needed to open the valve. It varies by design and application.

Conclusion: Make the Right Choice for Your System

Check valves are not just optional components—they are essential for system safety, longevity, and efficiency. Choosing the right type and material can help your system work better and last longer.

At COVNA, we help customers around the world design smarter, safer, and more efficient flow systems with high-quality check valves built to last.
